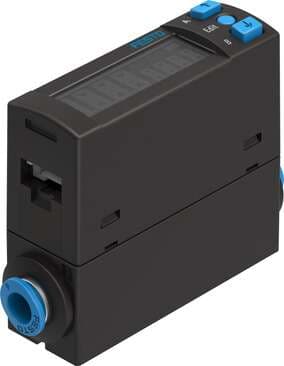

8058474 Festo Flow Sensors

Product Details

• Electrical connection for input 1, connection pattern
  00995428
• Electrical connection 1, number of pins/wires
  4
• Note on materials
  RoHS-compliant
• Operating medium
  Argon Nitrogen
• Repetition accuracy margin in ± %FS
  0.8 %FS
• Switching output
  2 x PNP or 2 x NPN switchable
• Flow characteristic curve, end value
  100 l/min
• Min. load resistance of voltage output
  20 kOhm
• IO-Link®, profile
  Smart sensor profile
• IO-Link®, protocol version
  Device V 1.1
• IO-Link®, process data content IN
  1 bit BDC (volume monitoring) 2 bit BDC (flow monitoring)
• Pneumatic connection
  For pneumatic tubing outside diameter 8 mm
• Displayable unit(s)
  g scft/min
• Electrical connection 1, connection technology
  Connection diagram L1J
• CE marking (see declaration of conformity)
  As per EU EMC directive As per EU RoHS directive
• Flow direction
  Unidirectional
• Method of measurement
  Heat transfer
• Flow measuring range end value
  100 l/min
• Temperature co-efficient margin in ± %FS/K
  typ. 0.15% FS/K
• Flow characteristic curve, start value
  0 l/min
Analog output
0 - 10 V 1 - 5 V
Protocol
IO-Link®
IO-Link®, port class
A
DC operating voltage range
22 V ... 26 V
Housing material
PA-reinforced
Pressure drop
15 mbar
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Type code
SFAH
Electrical connection 1, connection type
Plug
Idle current
≤ 25 mA
Certificate issuing authority
UL E322346
Flow measuring range start value
2 l/min
Accuracy of flow rate
± (2% o.m.v. + 1% FS)
Zero point repetition accuracy in ± %FS
0.2 %FS
Max. output current
100 mA
Overload protection
Available
IO-Link®, SIO mode support
Yes
IO-Link®, data memory required
< 500 byte
Type of mounting
With accessories
Display type
Illuminated LCD, multi-color
Protection class
III
Pneumatic connection, outlet direction
Straight
Symbol
00995795
Certification
RCM compliance mark c UL us - Listed (OL)
Operating pressure
-0.9 bar ... 10 bar
Temperature of medium
0 °C ... 50 °C
Pressure influence of margin in ±%FS/bar
1 %FS/b.
Switching function
Window comparator Auto difference monitoring
Max. load resistance of current output
500 Ohm
IO-Link®, function classes
Binary data channel (BDC) Teach channel
IO-Link®, service data contents IN
32 bit volume/mass measurement
Reverse polarity protection
for all electrical connections
Product weight
60 g
Materials in contact with the media
Wrought aluminum alloy, anodized High-alloy stainless steel
Setting options
IO-Link® Via display and pushbuttons
Protection against tampering
IO-Link® PIN code
KC characters
KC EMC
Measured variable
Mass flow rate Volumetric flow rate
Measuring principle
Thermal
Ambient temperature
0 °C ... 50 °C
Nominal temperature
23 °C
Switching element function
N/C contact/N/O contact switchable
Short-circuit protection
yes
IO-Link®, communication mode
COM2 (38,4 kBd)
IO-Link®, process data width IN
3 Byte
IO-Link®, minimum cycle time
4 ms
Mounting position
Any
Degree of protection
IP40
