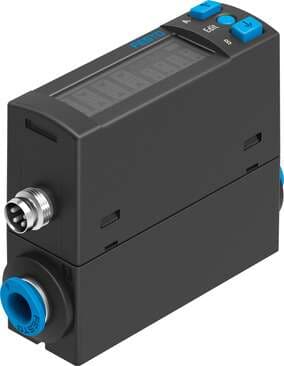

8058472 Festo Flow Sensors

Product Details

• Electrical connection for input 1, connection pattern
  00991171
• Idle current
  ≤ 25 mA
• Certificate issuing authority
  UL E322346
• Flow direction
  Unidirectional
• Method of measurement
  Heat transfer
• Repetition accuracy margin in ± %FS
  0.8 %FS
• Switching output
  2 x PNP or 2 x NPN switchable
• Max. output current
  100 mA
• Protocol
  IO-Link®
• CE marking (see declaration of conformity)
  As per EU EMC directive As per EU RoHS directive
• Flow measuring range start value
  1 l/min
• Operating medium
  Argon Nitrogen
• Temperature co-efficient margin in ± %FS/K
  typ. 0.15% FS/K
• Analog output
  0 - 10 V 1 - 5 V
• Short-circuit protection
  yes
• IO-Link®, process data width IN
  3 Byte
• IO-Link®, minimum cycle time
  4 ms
• Pneumatic connection
  For pneumatic tubing outside diameter 8 mm
• Protection class
  III
• Pneumatic connection, outlet direction
  Straight
Symbol
00995794
Flow measuring range end value
50 l/min
Zero point repetition accuracy in ± %FS
0.2 %FS
Switching function
Window comparator Auto difference monitoring
Flow characteristic curve, end value
50 l/min
IO-Link®, profile
Smart sensor profile
IO-Link®, service data contents IN
32 bit volume/mass measurement
Reverse polarity protection
for all electrical connections
Type of mounting
With accessories
Display type
Illuminated LCD, multi-color
Type code
SFAH
Electrical connection 1, connection type
Plug
KC characters
KC EMC
Electrical connection 1, number of pins/wires
4
Measured variable
Mass flow rate Volumetric flow rate
Operating pressure
-0.9 bar ... 10 bar
Temperature of medium
0 °C ... 50 °C
Accuracy of flow rate
± (2% o.m.v. + 1% FS)
Pressure influence of margin in ±%FS/bar
1 %FS/b.
Flow characteristic curve, start value
0 l/min
Max. load resistance of current output
500 Ohm
IO-Link®, protocol version
Device V 1.1
IO-Link®, function classes
Binary data channel (BDC) Teach channel
IO-Link®, SIO mode support
Yes
Mounting position
Any
Materials in contact with the media
Wrought aluminum alloy, anodized High-alloy stainless steel
Pressure drop
12 mbar
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Protection against tampering
IO-Link® PIN code
Electrical connection 1, connection technology
M8x1 A-coded as per EN 61076-2-104
Certification
RCM compliance mark c UL us - Listed (OL)
Note on materials
RoHS-compliant
Measuring principle
Thermal
Nominal temperature
23 °C
Ambient temperature
0 °C ... 50 °C
Switching element function
N/C contact/N/O contact switchable
Min. load resistance of voltage output
20 kOhm
Overload protection
Available
IO-Link®, process data content IN
1 bit BDC (volume monitoring) 2 bit BDC (flow monitoring)
IO-Link®, data memory required
< 500 byte
Product weight
60 g
Displayable unit(s)
g scft/min
Degree of protection
IP40
IO-Link®, communication mode
COM2 (38,4 kBd)
IO-Link®, port class
A
DC operating voltage range
22 V ... 26 V
Housing material
PA-reinforced
Setting options
IO-Link® Via display and pushbuttons
