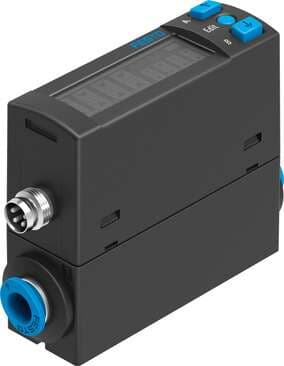

8058470 Festo Flow Sensors

Product Details

• Nominal temperature
  23 °C
• Electrical connection 1, number of pins/wires
  4
• Protection against tampering
  IO-Link® PIN code
• Electrical connection 1, connection type
  Plug
• Symbol
  00995794
• Note on materials
  RoHS-compliant
• Method of measurement
  Heat transfer
• Operating medium
  Argon Nitrogen
• Idle current
  ≤ 25 mA
• Type code
  SFAH
• Repetition accuracy margin in ± %FS
  0.8 %FS
• Pressure influence of margin in ±%FS/bar
  1 %FS/b.
• Max. output current
  100 mA
• Max. load resistance of current output
  500 Ohm
• Protocol
  IO-Link®
• IO-Link®, function classes
  Binary data channel (BDC) Teach channel
• IO-Link®, process data content IN
  1 bit BDC (volume monitoring) 2 bit BDC (flow monitoring)
• DC operating voltage range
  22 V ... 26 V
• Electrical connection for input 1, connection pattern
  00991171
• KC characters
  KC EMC
Certificate issuing authority
UL E322346
Measuring principle
Thermal
Accuracy of flow rate
± (2% o.m.v. + 1% FS)
Zero point repetition accuracy in ± %FS
0.2 %FS
Product weight
60 g
Pneumatic connection, outlet direction
Straight
Electrical connection 1, connection technology
M8x1 A-coded as per EN 61076-2-104
Certification
RCM compliance mark c UL us - Listed (OL)
Measured variable
Mass flow rate Volumetric flow rate
Flow measuring range end value
10 l/min
Ambient temperature
0 °C ... 50 °C
Temperature co-efficient margin in ± %FS/K
typ. 0.15% FS/K
Flow characteristic curve, start value
0 l/min
Overload protection
Available
IO-Link®, port class
A
IO-Link®, service data contents IN
32 bit volume/mass measurement
Type of mounting
With accessories
Materials in contact with the media
Wrought aluminum alloy, anodized High-alloy stainless steel
Pressure drop
< 5 mbar
CE marking (see declaration of conformity)
As per EU EMC directive As per EU RoHS directive
Flow direction
Unidirectional
Flow measuring range start value
0.2 l/min
Operating pressure
-0.9 bar ... 10 bar
Temperature of medium
0 °C ... 50 °C
Switching element function
N/C contact/N/O contact switchable
Short-circuit protection
yes
IO-Link®, process data width IN
3 Byte
IO-Link®, data memory required
< 500 byte
Pneumatic connection
For pneumatic tubing outside diameter 6 mm
Degree of protection
IP40
Setting options
IO-Link® Via display and pushbuttons
Switching function
Window comparator Auto difference monitoring
Analog output
0 - 10 V 1 - 5 V
Min. load resistance of voltage output
20 kOhm
IO-Link®, protocol version
Device V 1.1
IO-Link®, communication mode
COM2 (38,4 kBd)
IO-Link®, SIO mode support
Yes
Reverse polarity protection
for all electrical connections
Display type
Illuminated LCD, multi-color
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Switching output
2 x PNP or 2 x NPN switchable
Flow characteristic curve, end value
10 l/min
IO-Link®, profile
Smart sensor profile
IO-Link®, minimum cycle time
4 ms
Mounting position
Any
Housing material
PA-reinforced
Protection class
III
Displayable unit(s)
g scft/min
