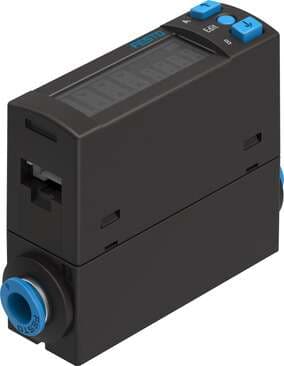

8058467 Festo Flow Sensors

Product Details

• Pneumatic connection, outlet direction
  Straight
• KC characters
  KC EMC
• Certification
  RCM compliance mark c UL us - Listed (OL)
• Measured variable
  Mass flow rate Volumetric flow rate
• Flow measuring range end value
  5 l/min
• Ambient temperature
  0 °C ... 50 °C
• Repetition accuracy margin in ± %FS
  0.8 %FS
• Pressure influence of margin in ±%FS/bar
  1 %FS/b.
• Analog output
  0 - 10 V 1 - 5 V
• Max. load resistance of current output
  500 Ohm
• IO-Link®, process data width IN
  3 Byte
• Mounting position
  Any
• Setting options
  IO-Link® Via display and pushbuttons
• Electrical connection for input 1, connection pattern
  00995428
• Idle current
  ≤ 25 mA
• Note on materials
  RoHS-compliant
• Measuring principle
  Thermal
• Operating medium
  Argon Nitrogen
• Zero point repetition accuracy in ± %FS
  0.2 %FS
• Switching output
  2 x PNP or 2 x NPN switchable
Flow characteristic curve, start value
0 l/min
Min. load resistance of voltage output
20 kOhm
IO-Link®, protocol version
Device V 1.1
IO-Link®, port class
A
IO-Link®, service data contents IN
32 bit volume/mass measurement
Electrical connection 1, connection type
Plug
Symbol
00995795
Flow measuring range start value
0.1 l/min
Nominal temperature
23 °C
Max. output current
100 mA
IO-Link®, function classes
Binary data channel (BDC) Teach channel
Protocol
IO-Link®
IO-Link®, data memory required
< 500 byte
Reverse polarity protection
for all electrical connections
Product weight
60 g
Display type
Illuminated LCD, multi-color
Protection class
III
Type code
SFAH
Electrical connection 1, number of pins/wires
4
Certificate issuing authority
UL E322346
Flow direction
Unidirectional
Operating pressure
-0.9 bar ... 10 bar
Accuracy of flow rate
± (2% o.m.v. + 1% FS)
Switching function
Window comparator Auto difference monitoring
Flow characteristic curve, end value
5 l/min
Overload protection
Available
IO-Link®, communication mode
COM2 (38,4 kBd)
IO-Link®, process data content IN
1 bit BDC (volume monitoring) 2 bit BDC (flow monitoring)
DC operating voltage range
22 V ... 26 V
Materials in contact with the media
Wrought aluminum alloy, anodized High-alloy stainless steel
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Protection against tampering
IO-Link® PIN code
Electrical connection 1, connection technology
Connection diagram L1J
CE marking (see declaration of conformity)
As per EU EMC directive As per EU RoHS directive
Method of measurement
Heat transfer
Temperature of medium
0 °C ... 50 °C
Temperature co-efficient margin in ± %FS/K
typ. 0.15% FS/K
Switching element function
N/C contact/N/O contact switchable
Short-circuit protection
yes
IO-Link®, profile
Smart sensor profile
IO-Link®, SIO mode support
Yes
IO-Link®, minimum cycle time
4 ms
Type of mounting
With accessories
Housing material
PA-reinforced
Displayable unit(s)
g scft/min
Degree of protection
IP40
Pneumatic connection
For pneumatic tubing outside diameter 6 mm
Pressure drop
< 5 mbar
