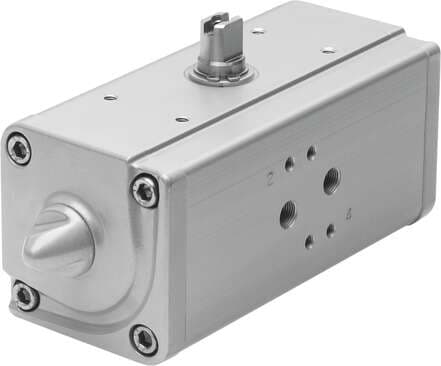

8030605 Festo Quarter Turn Actuators

Product Details

• Size of valve actuator
  0106
• Depth shaft connection
  19.3 mm
• Design
  Scotch yoke system
• Closing direction
  Clockwise closing
• Type of ignition protection for gas
  Ex h IIC T6...T3 Gb X
• Swivel angle
  90 deg
• Standard connection for valve
  ISO 5211
• Symbol
  00991265
• ATEX category gas
  II 2G
• ATEX category for dust
  II 2D
• Information on operating and pilot media
  Operation with oil lubrication possible (required for further use)
• Pneumatic connection
  G1/8
• Seals material
  FPM PTFE-reinforced
• Material number for shaft
  1.4305
• Flange hole pattern
  F05 F07
• Type code
  DAPS
• Mounting position
  Any
• Operating pressure
  3 bar ... 8.4 bar
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• Torque at nominal operating pressure and 50° swivel angle
  53 Nm
Shaft connection
T17
Material of screws
High-alloy steel
End-position adjusting range at 0°
-1 deg ... 9 deg
Mode of operation
Double-acting
Valve connection conforms to standard
VDI/VDE 3845 (NAMUR)
Nominal operating pressure
5.6 bar
Type of (ignition) protection for dust
Ex h IIIC T85°C...T200°C Db X
Corrosion resistance class (CRC)
3 - High corrosion stress
Torque at nominal operating pressure and 90° swivel angle
80 Nm
Air consumption at 6 bar per cycle 0°-nominal swivel angle-0°
3.85 l
Note on materials
Contains paint-wetting impairment substances RoHS-compliant
Cushioning
No cushioning
Position sensing
None
Safety integrity level (SIL)
Up to SIL 2 high demand mode Up to SIL 2 low demand mode
Explosive ambient temperature
-20°C <= Ta <= +150°C
CE marking (see declaration of conformity)
as per EU explosion protection directive (ATEX)
Note about the torque
The actuator's operating torque must not be higher than the maximum permissible torque listed in ISO 5211, based on the size of the mounting flange and the coupling.
Cover material
Wrought aluminum alloy
Shaft material
High-alloy steel
Ambient temperature
-20 °C ... 150 °C
Explosion prevention and protection
Zone 1 (ATEX) Zone 22 (ATEX)
Torque at nominal operating pressure and 0° swivel angle
106 Nm
Product weight
2500 g
Housing material
Wrought aluminum alloy
