8030604 Festo Quarter Turn Actuators

Name: 8030604
Brand: Festo

Part#:8030604

Manufacturer:Festo

Alt. Part#:DAPS-0060-090-R-F0507-T4

Product Lifecycle:Active

Get a quick Quote!

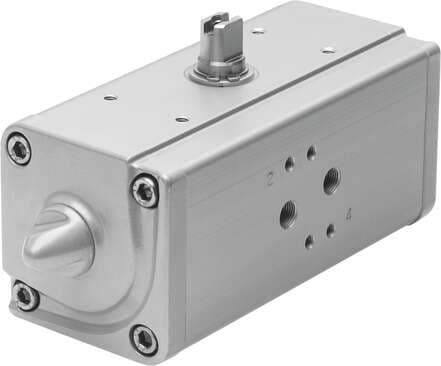

semi-rotary drive DAPS-0060-090-R-F0507-T4 double-acting, air connection to VDI/VDE 3845 Namur valves, direct flange mounting, high-temperature version. Size of actuator: 0060, Flange hole pattern: (* F05, * F07), Swivel angle: 90 deg, End-position adjust

About the manufacturer: Festo is one of the manufacturers that offers Quarter Turn Actuators that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.

Check out the 8030604 Festo price in the box on the right side or send a quick quote.

Product Details

End-position adjusting range at 0°
-1 deg ... 9 deg
Standard connection for valve
ISO 5211
Position sensing
None
Valve connection conforms to standard
VDI/VDE 3845 (NAMUR)
Nominal operating pressure
5.6 bar
Explosion prevention and protection
Zone 1 (ATEX) Zone 22 (ATEX)
Torque at nominal operating pressure and 90° swivel angle
45 Nm
Shaft connection
T14
Housing material
Wrought aluminum alloy
Flange hole pattern
F05 F07
Swivel angle
90 deg
Mounting position
Any
Mode of operation
Double-acting
Safety integrity level (SIL)
Up to SIL 2 high demand mode Up to SIL 2 low demand mode
Type of ignition protection for gas
Ex h IIC T6...T3 Gb X
Ambient temperature
-20 °C ... 150 °C
Torque at nominal operating pressure and 0° swivel angle
60 Nm
Torque at nominal operating pressure and 50° swivel angle
30 Nm
Seals material
FPM PTFE-reinforced
Material of screws
High-alloy steel

Depth shaft connection

16.5 mm

Closing direction

Clockwise closing

ATEX category gas

II 2G

Explosive ambient temperature

-20°C <= Ta <= +150°C

Corrosion resistance class (CRC)

3 - High corrosion stress

Air consumption at 6 bar per cycle 0°-nominal swivel angle-0°

2.1 l

Product weight

1600 g

Material number for shaft

1.4305

Cushioning

No cushioning

ATEX category for dust

II 2D

CE marking (see declaration of conformity)

as per EU explosion protection directive (ATEX)

Pneumatic connection

G1/8

Cover material

Wrought aluminum alloy

Size of valve actuator

0060

Type code

DAPS

Design

Scotch yoke system

Symbol

00991265

Operating pressure

3 bar ... 8.4 bar

Type of (ignition) protection for dust

Ex h IIIC T85°C...T200°C Db X

Information on operating and pilot media

Operation with oil lubrication possible (required for further use)

Operating medium

Compressed air as per ISO 8573-1:2010 [7:4:4]

Note about the torque

The actuator's operating torque must not be higher than the maximum permissible torque listed in ISO 5211, based on the size of the mounting flange and the coupling.

Note on materials

Contains paint-wetting impairment substances RoHS-compliant

Shaft material

High-alloy steel

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
