565408 Festo Flow Sensors

565408 on Powermatic Associates
Festo

Part#:565408

Alt. Part#:SFAB-1000U-WQ10-2SV-M12

Manufacturer:Festo

Category:Flow Sensors

Product Lifecycle:Active

Product description

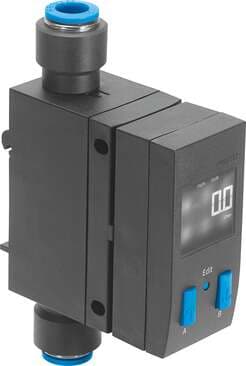

flow sensor SFAB-1000U-WQ10-2SV-M12 With rotatable display and integrated QS fittings. Authorisation: (* RCM Mark, * c UL us - Recognized (OL)), CE mark (see declaration of conformity): (* to EU directive for EMC, * in accordance with EU RoHS directive),

Product Details

  • Note on materials
    RoHS-compliant
  • Flow measuring range end value
    1000 l/min
  • Temperature of medium
    0 °C ... 50 °C
  • Switching function
    Window comparator Threshold value comparator
  • Analog output
    0 - 10 V
  • Short-circuit protection
    yes
  • Display type
    Illuminated LCD blue
  • Displayable unit(s)
    l scfm
  • CE marking (see declaration of conformity)
    As per EU EMC directive As per EU RoHS directive
  • Flow direction
    Unidirectional P1 -> P2
  • Ambient temperature
    0 °C ... 50 °C
  • Accuracy of flow rate
    ± (3% o.m.v. + 0.3% FS)
  • Min. load resistance of voltage output
    10 kOhm
  • Type of mounting
    Optionally: With wall/surface bracket
  • Housing material
    PA-reinforced
  • Type code
    SFAB
  • Measured variable
    Flow rate Consumption
  • Operating pressure
    0 bar ... 10 bar
  • Nominal temperature
    23 °C
  • Zero point repetition accuracy in ± %FS
    0.2 %FS
  • Flow characteristic curve, start value
    0 l/min
  • DC operating voltage range
    15 V ... 30 V
  • Reverse polarity protection
    for all electrical connections
  • Pneumatic connection
    QS-10
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • KC characters
    KC EMC
  • Measuring principle
    Thermal
  • Repetition accuracy margin in ± %FS
    0.8 %FS
  • Switching element function
    N/C contact N/O contact
  • Output characteristic curve initial value
    0 V
  • End value output characteristic curve
    10 V
  • Pin allocation in accordance with standards
    EN 60947-5-2
  • Mounting position
    Any
  • Degree of protection
    IP65
  • Certification
    RCM compliance mark c UL us - Recognized (OL)
  • Certificate issuing authority
    UL E322346
  • Flow measuring range start value
    10 l/min
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4] Nitrogen
  • Switching output
    2 x PNP or 2 x NPN switchable
  • Max. output current
    ≤ 100 mA
  • Flow characteristic curve, end value
    1000 l/min
  • Electrical connection
    5-pin Plug, straight
  • Product weight
    600 g
  • Pressure drop
    < 100 mbar

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
