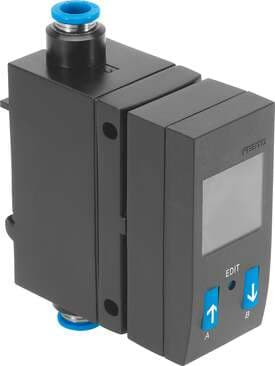

565396 Festo Flow Sensors

Product Details

• Type code
  SFAB
• Measured variable
  Flow rate Consumption
• Temperature of medium
  0 °C ... 50 °C
• Switching element function
  N/C contact N/O contact
• Output characteristic curve initial value
  0 V
• Product weight
  600 g
• Pressure drop
  < 100 mbar
• KC characters
  KC EMC
• Certificate issuing authority
  UL E322346
• Flow direction
  Unidirectional P1 -> P2
• Flow measuring range start value
  2 l/min
• Ambient temperature
  0 °C ... 50 °C
• Zero point repetition accuracy in ± %FS
  0.2 %FS
• Max. output current
  ≤ 100 mA
• Min. load resistance of voltage output
  10 kOhm
• Short-circuit protection
  yes
• Electrical connection
  5-pin Plug, straight
• Pin allocation in accordance with standards
  EN 60947-5-2
• Displayable unit(s)
  l scfm
• Corrosion resistance class (CRC)
  2 - Moderate corrosion stress
Note on materials
RoHS-compliant
Flow measuring range end value
200 l/min
Nominal temperature
23 °C
Switching function
Window comparator Threshold value comparator
Flow characteristic curve, end value
200 l/min
Reverse polarity protection
for all electrical connections
Mounting position
Any
Housing material
PA-reinforced
Degree of protection
IP65
Certification
RCM compliance mark c UL us - Recognized (OL)
CE marking (see declaration of conformity)
As per EU EMC directive As per EU RoHS directive
Measuring principle
Thermal
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4] Nitrogen
Repetition accuracy margin in ± %FS
0.8 %FS
Analog output
0 - 10 V
DC operating voltage range
15 V ... 30 V
Type of mounting
Optionally: With wall/surface bracket
Operating pressure
0 bar ... 10 bar
Accuracy of flow rate
± (3% o.m.v. + 0.3% FS)
Switching output
2 x PNP or 2 x NPN switchable
Flow characteristic curve, start value
0 l/min
End value output characteristic curve
10 V
Pneumatic connection
QS-8
Display type
Illuminated LCD blue

Related documents 565396 Specs
