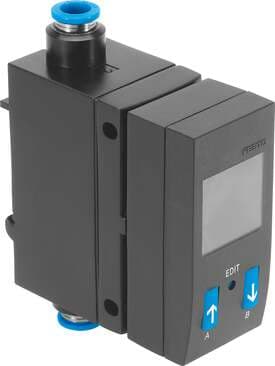

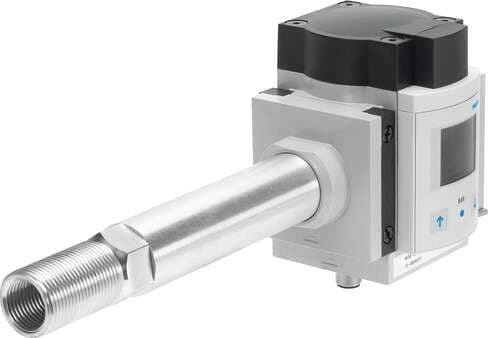

565395 Festo Flow Sensors

Product Details

• Certificate issuing authority
  UL E322346
• Flow direction
  Unidirectional P1 -> P2
• Operating pressure
  0 bar ... 10 bar
• Ambient temperature
  0 °C ... 50 °C
• Zero point repetition accuracy in ± %FS
  0.2 %FS
• Flow characteristic curve, start value
  0 l/min
• End value output characteristic curve
  20 mA
• Pin allocation in accordance with standards
  EN 60947-5-2
• Pneumatic connection
  QS-8
• Pressure drop
  < 100 mbar
• Flow measuring range end value
  200 l/min
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4] Nitrogen
• Nominal temperature
  23 °C
• Switching output
  2 x PNP or 2 x NPN switchable
• Output characteristic curve initial value
  4 mA
• Reverse polarity protection
  for all electrical connections
• Mounting position
  Any
• Degree of protection
  IP65
• Display type
  Illuminated LCD blue
• Certification
  RCM compliance mark c UL us - Recognized (OL)
Measured variable
Flow rate Consumption
Switching function
Window comparator Threshold value comparator
Analog output
4 - 20 mA
Short-circuit protection
yes
Type of mounting
Optionally: With wall/surface bracket
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Type code
SFAB
CE marking (see declaration of conformity)
As per EU EMC directive As per EU RoHS directive
Measuring principle
Thermal
Temperature of medium
0 °C ... 50 °C
Repetition accuracy margin in ± %FS
0.8 %FS
Switching element function
N/C contact N/O contact
Max. output current
≤ 100 mA
DC operating voltage range
15 V ... 30 V
Displayable unit(s)
l scfm
KC characters
KC EMC
Note on materials
RoHS-compliant
Flow measuring range start value
2 l/min
Accuracy of flow rate
± (3% o.m.v. + 0.3% FS)
Flow characteristic curve, end value
200 l/min
Max. load resistance of current output
500 Ohm
Electrical connection
5-pin Plug, straight
Product weight
600 g
Housing material
PA-reinforced
