565383 Festo Flow Sensors

565383 on Powermatic Associates
Festo

Part#:565383

Alt. Part#:SFAM-62-5000L-TG12-2SA-M12

Manufacturer:Festo

Category:Flow Sensors

Product Lifecycle:Active

Product description

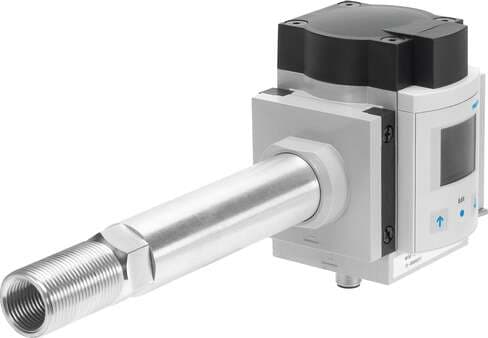

flow sensor SFAM-62-5000L-TG12-2SA-M12 For threaded mounting. Authorisation: (* RCM Mark, * c UL us - Recognized (OL)), CE mark (see declaration of conformity): (* to EU directive for EMC, * in accordance with EU RoHS directive), KC mark: KC-EMV, Certific

Product Details

  • KC characters
    KC EMC
  • Note on materials
    RoHS-compliant
  • Flow measuring range end value
    5000 l/min
  • Accuracy of flow rate
    ± (3% o.m.v. + 0.3% FS)
  • Zero point repetition accuracy in ± %FS
    0.2 %FS
  • Analog output
    4 - 20 mA
  • Short-circuit protection
    yes
  • Pneumatic connection
    G1/2
  • Certification
    RCM compliance mark c UL us - Recognized (OL)
  • Measured variable
    Flow rate Consumption
  • Flow measuring range start value
    50 l/min
  • Nominal temperature
    23 °C
  • Switching function
    Window comparator or threshold value comparator, adjustable
  • Output characteristic curve initial value
    4 mA
  • Type of mounting
    Line installation
  • Product weight
    1100 g
  • CE marking (see declaration of conformity)
    As per EU EMC directive As per EU RoHS directive
  • Measuring principle
    Thermal
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4] Nitrogen
  • Temperature co-efficient margin in ± %FS/K
    typ. 0. 1%FS/K
  • Switching element function
    N/C contact N/O contact
  • Flow characteristic curve, end value
    5000 l/min
  • Reverse polarity protection
    for all electrical connections
  • Max. load resistance of current output
    500 Ohm
  • Electrical connection
    5-pin Plug, straight
  • Displayable unit(s)
    l scfm
  • Degree of protection
    IP65
  • Type code
    SFAM
  • Certificate issuing authority
    UL E322346
  • Operating pressure
    0 bar ... 16 bar
  • Temperature of medium
    0 °C ... 50 °C
  • Pressure influence of margin in ±%FS/bar
    0.5 %FS/b.
  • Switching output
    2x PNP or 2x NPN adjustable
  • Flow characteristic curve, start value
    0 l/min
  • DC operating voltage range
    15 V ... 30 V
  • Display type
    Illuminated LCD blue
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Flow direction
    Unidirectional From left to right
  • Ambient temperature
    0 °C ... 50 °C
  • Repetition accuracy margin in ± %FS
    0.8 %FS
  • Max. output current
    100 mA
  • End value output characteristic curve
    20 mA
  • Mounting position
    Horizontal
  • Pressure drop
    < 100 mbar
  • Housing material
    Die-cast aluminum PA-reinforced

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
