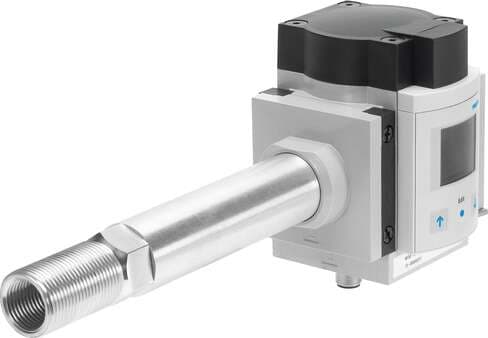

565379 Festo Flow Sensors

Product Details

• Type code
  SFAM
• Certificate issuing authority
  UL E322346
• Flow measuring range end value
  3000 l/min
• Repetition accuracy margin in ± %FS
  0.8 %FS
• Switching output
  2x PNP or 2x NPN adjustable
• KC characters
  KC EMC
• Note on materials
  RoHS-compliant
• Operating pressure
  0 bar ... 16 bar
• Zero point repetition accuracy in ± %FS
  0.2 %FS
• Flow characteristic curve, start value
  0 l/min
• DC operating voltage range
  15 V ... 30 V
• CE marking (see declaration of conformity)
  As per EU EMC directive As per EU RoHS directive
• Measuring principle
  Thermal
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4] Nitrogen
• Nominal temperature
  23 °C
• Pressure influence of margin in ±%FS/bar
  0.5 %FS/b.
• Flow characteristic curve, end value
  3000 l/min
• Short-circuit protection
  yes
• Reverse polarity protection
  for all electrical connections
• Displayable unit(s)
  l scfm
Flow measuring range start value
30 l/min
Temperature of medium
0 °C ... 50 °C
Accuracy of flow rate
± (3% o.m.v. + 0.3% FS)
Switching element function
N/C contact N/O contact
Max. output current
100 mA
Max. load resistance of current output
500 Ohm
Mounting position
Horizontal
Pneumatic connection
G1/2
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Certification
RCM compliance mark c UL us - Recognized (OL)
Measured variable
Flow rate Consumption
Flow direction
Unidirectional From left to right
Ambient temperature
0 °C ... 50 °C
Temperature co-efficient margin in ± %FS/K
typ. 0. 1%FS/K
Switching function
Window comparator or threshold value comparator, adjustable
Output characteristic curve initial value
4 mA
End value output characteristic curve
20 mA
Electrical connection
5-pin Plug, straight
Display type
Illuminated LCD blue
Housing material
Die-cast aluminum PA-reinforced
Analog output
4 - 20 mA
Product weight
1100 g
Pressure drop
< 100 mbar
Type of mounting
Line installation
Degree of protection
IP65
