562671 Festo Couplings

562671 on Powermatic Associates
Festo

Part#:562671

Alt. Part#:EAMC-16-20-3-6

Manufacturer:Festo

Category:Couplings

Product Lifecycle:Active

Product description

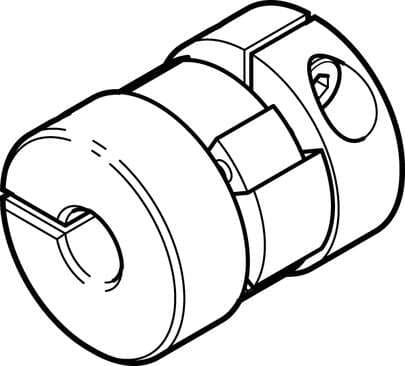

coupling EAMC-16-20-3-6 Holder diameter 1: 3 mm, Holder diameter 2: 6 mm, Size: 16, Nominal length: 20 mm, Assembly position: Any

Product Details

  • Diameter of holder 2
    6 mm
  • Mounting position
    Any
  • Transferable torque
    0.2 Nm
  • Size
    16
  • Storage temperature
    -25 °C ... 60 °C
  • Note on materials
    RoHS-compliant
  • Nominal length
    20 mm
  • Max. rotational speed
    10000 1/min
  • Product weight
    8 g
  • Relative air humidity
    0 - 95 %
  • Mass moment of inertia
    0.28 kgmm²
  • Diameter of holder 1
    3 mm
  • Type code
    EAMC
  • Ambient temperature
    -25 °C ... 60 °C

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

562671 Related Documents

562671 DataSheet.pdf

Manufacturer warranty

562671 Festo
