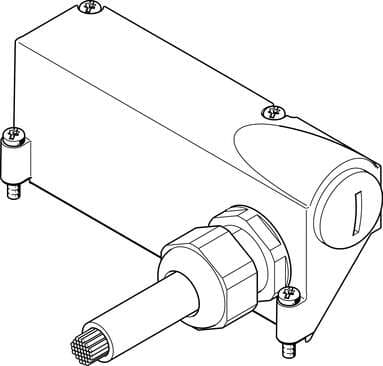

560420 Festo Cable Assemblies

Name: 560420
Brand: Festo

Part#:560420

Alt. Part#:VMPAL-KM-S-SD25-IP67-5

Manufacturer:Festo

Category:Cable Assemblies

Product Lifecycle:Active

Product description

connecting cable VMPAL-KM-S-SD25-IP67-5 Product weight: 1195 g, Electrical connection: Cable with plug, Cable length: 5 m, Cable attribute: Standard, Min. cable bending radius: 122 mm

Product Details

Type code
VMPAL
Cable characteristic
Standard
Ambient temperature with flexible cable installation
-5 °C ... 80 °C
Product weight
1195 g
Cable length
5 m
Cable design
25 x 0.34 mm²
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Min. cable bending radius
122 mm
CE marking (see declaration of conformity)
As per EU RoHS directive
Degree of protection
IP67 as per IEC 60529
Material of cable sheath
PVC
Electrical connection
Cable with plug
Cable diameter
10.2 mm
Note on materials
RoHS-compliant

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

560420 Related Documents

560420 DataSheet.pdf
