558008 Festo Couplings

558008 on Powermatic Associates
Festo

Part#:558008

Alt. Part#:EAMD-67-51-24-32X32-U

Manufacturer:Festo

Category:Couplings

Product Lifecycle:Active

Product description

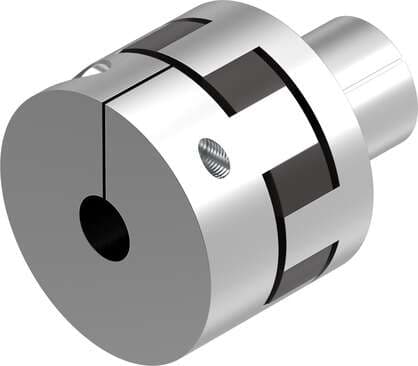

coupling EAMD-67-51-24-32X32-U drive component, which transmits the rotary motion of a stepper or servo motor Holder diameter 1: 24 mm, Holder diameter 2: 32 mm, Size: 67, Nominal length: 51 mm, Assembly position: Any

Product Details

  • Diameter of holder 2
    32 mm
  • Max. rotational speed
    4500 1/min
  • Mass moment of inertia
    374 kgmm²
  • Product weight
    736 g
  • Relative air humidity
    0 - 95 %
  • Nominal length
    51 mm
  • Storage temperature
    -25 °C ... 60 °C
  • Ambient temperature
    -25 °C ... 60 °C
  • Size
    67
  • Mounting position
    Any
  • Note on materials
    RoHS-compliant
  • Diameter of holder 1
    24 mm
  • Type code
    EAMD
  • Transferable torque
    143 Nm

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

558008 Related Documents

558008 DataSheet.pdf

Manufacturer warranty

558008 Festo
