558003 Festo Couplings

558003 on Powermatic Associates
Festo

Part#:558003

Alt. Part#:EAMD-56-46-19-23X27

Manufacturer:Festo

Category:Couplings

Product Lifecycle:Active

Product description

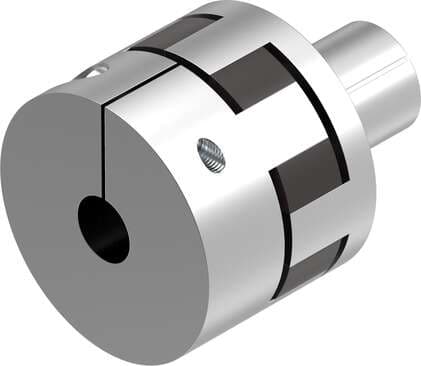

coupling EAMD-56-46-19-23X27 drive component, which transmits the rotary motion of a stepper or servo motor Holder diameter 1: 19 mm, Holder diameter 2: 23 mm, Size: 56, Nominal length: 46,5 mm, Assembly position: Any

Product Details

  • Type code
    EAMD
  • Ambient temperature
    -25 °C ... 60 °C
  • Diameter of holder 2
    23 mm
  • Max. rotational speed
    5500 1/min
  • Mass moment of inertia
    151 kgmm²
  • Size
    56
  • Mounting position
    Any
  • Product weight
    418 g
  • Nominal length
    46.5 mm
  • Relative air humidity
    0 - 95 %
  • Note on materials
    RoHS-compliant
  • Diameter of holder 1
    19 mm
  • Storage temperature
    -25 °C ... 60 °C
  • Transferable torque
    60 Nm

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
