558001 Festo Couplings

558001 on Powermatic Associates
Festo

Part#:558001

Alt. Part#:EAMD-32-32-11-16X20

Manufacturer:Festo

Category:Couplings

Product Lifecycle:Active

Product description

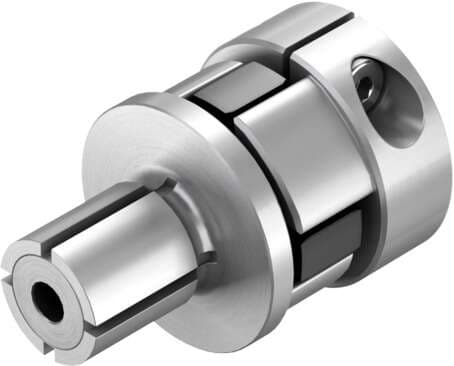

coupling EAMD-32-32-11-16X20 drive component, which transmits the rotary motion of a stepper or servo motor Holder diameter 1: 11 mm, Holder diameter 2: 16 mm, Size: 32, Nominal length: 32 mm, Assembly position: Any

Product Details

  • Diameter of holder 1
    11 mm
  • Type code
    EAMD
  • Max. rotational speed
    8000 1/min
  • Diameter of holder 2
    16 mm
  • Mounting position
    Any
  • Transferable torque
    12.5 Nm
  • Storage temperature
    -25 °C ... 60 °C
  • Mass moment of inertia
    14.5 kgmm²
  • Size
    32
  • Relative air humidity
    0 - 95 %
  • Product weight
    126 g
  • Nominal length
    32 mm
  • Ambient temperature
    -25 °C ... 60 °C
  • Note on materials
    RoHS-compliant

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
