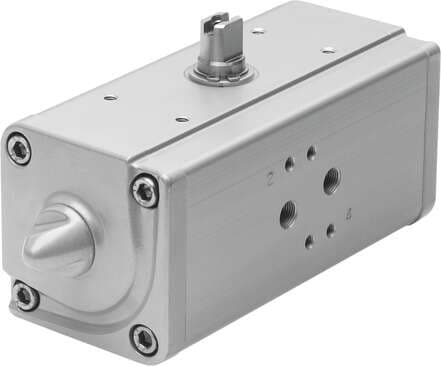

553177 Festo Quarter Turn Actuators
Part#:553177
Manufacturer:Festo
Alt. Part#:DAPS-0180-090-R-F0710-T6
Product Lifecycle:Active
Get a quick Quote!
semi-rotary drive DAPS-0180-090-R-F0710-T6 double-acting, air connection to VDI/VDE 3845 Namur valves, direct flange mounting, version with handwheel, low temperature version. Size of actuator: 0180, Flange hole pattern: (* F07, * F10), Swivel angle: 90 d
About the manufacturer: Festo is one of the manufacturers that offers Quarter Turn Actuators that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.
Check out the 553177 Festo price in the box on the right side or send a quick quote.
Product Details
- Size of valve actuator 0180
- Type code DAPS
- Closing direction Clockwise closing
- End-position adjusting range at 0° -1 deg ... 9 deg
- Mounting position Any
- Symbol 00991265
- Type of ignition protection for gas Ex h IIC T6...T3 Gb X
- Type of (ignition) protection for dust Ex h IIIC T85°C...T200°C Db X
- Swivel angle 90 deg
- Cushioning No cushioning
- Position sensing None
- Valve connection conforms to standard VDI/VDE 3845 (NAMUR)
- Nominal operating pressure 5.6 bar
- Ambient temperature -50 °C ... 60 °C
- Corrosion resistance class (CRC) 3 - High corrosion stress
- Air consumption at 6 bar per cycle 0°-nominal swivel angle-0° 6.65 l
- Flange hole pattern F07 F10
- Depth shaft connection 24.8 mm
- Mode of operation Double-acting
- Safety integrity level (SIL) Up to SIL 2 high demand mode Up to SIL 2 low demand mode
- ATEX category gas II 2G
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Torque at nominal operating pressure and 50° swivel angle 90 Nm
- Product weight 4600 g
- Seals material FVMQ PTFE-reinforced
- Material number for shaft 1.4305
- Standard connection for valve ISO 5211
- Design Scotch yoke system
- Explosive ambient temperature -50°C <= Ta <= +60°C
- CE marking (see declaration of conformity) as per EU explosion protection directive (ATEX)
- Torque at nominal operating pressure and 90° swivel angle 135 Nm
- Pneumatic connection G1/8
- Housing material Wrought aluminum alloy
- Operating pressure 3 bar ... 8.4 bar
- ATEX category for dust II 2D
- Explosion prevention and protection Zone 1 (ATEX) Zone 22 (ATEX)
- Torque at nominal operating pressure and 0° swivel angle 180 Nm
- Shaft connection T22
- Cover material Wrought aluminum alloy
- Shaft material High-alloy steel
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Note about the torque The actuator's operating torque must not be higher than the maximum permissible torque listed in ISO 5211, based on the size of the mounting flange and the coupling.
- Note on materials Contains paint-wetting impairment substances RoHS-compliant
- Material of screws High-alloy steel
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
