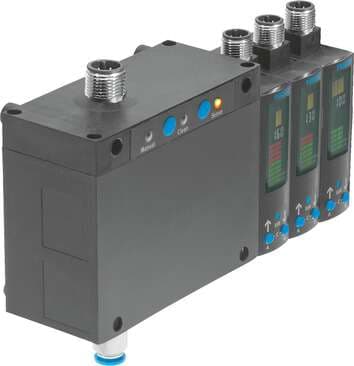

552144 Festo Air Gap Sensors
Part#:552144
Manufacturer:Festo
Alt. Part#:SOPA-CM3H-R1-WQ6-2N-M12
Product Lifecycle:Active
Get a quick Quote!
air gap sensor SOPA-CM3H-R1-WQ6-2N-M12 For contactless distance sensing. Authorisation: (* RCM Mark, * c UL us - Recognized (OL)), CE mark (see declaration of conformity): (* to EU directive for EMC, * in accordance with EU RoHS directive), KC mark: KC-EM
About the manufacturer: Festo is one of the manufacturers that offers Air Gap Sensors that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.
Check out the 552144 Festo price in the box on the right side or send a quick quote.
Product Details
- Type code SOPA
- KC characters KC EMC
- Repetition accuracy in ± µm 2.5 µm
- Note on materials Free of copper and PTFE RoHS-compliant
- Ambient temperature 0 °C ... 50 °C
- Electrical connection 1, connection type Plug
- Electrical connection for input 1, connection pattern 00991172
- Measuring principle Pneumatic
- Switching output 2xNPN
- Switching function Window comparator Threshold value with variable hysteresis
- Electrical connection 1, type of mounting Screw-type lock
- Symbol 00995373
- Sensing range 20 µm ... 200 µm
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- DC operating voltage range 22.8 V ... 26.4 V
- Pneumatic connection QS-6
- Setting options Teach-in Via display and pushbuttons
- Electrical connection 1, connection technology M12x1 A-coded as per EN 61076-2-101
- Detected variable Gap
- CE marking (see declaration of conformity) As per EU EMC directive As per EU RoHS directive
- Operating pressure 4 bar ... 7 bar
- Switching element function N/C contact/N/O contact switchable
- Reverse polarity protection for all electrical connections
- Display type Illuminated LCD, multi-color
- Degree of protection IP65
- Electrical connection 1, number of pins/wires 5
- Certification RCM compliance mark c UL us - Recognized (OL)
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Max. output current 100 mA
- Product weight 630 g
- Housing material Aluminum, anodized PA-reinforced
- Supply pressure 0.8 bar ... 1.6 bar
- Short-circuit protection yes
- Type of mounting Optionally: With wall/surface bracket
- Protection against tampering Electronic interlock
- Corrosion resistance class (CRC) 2 - Moderate corrosion stress
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
Related documents 552144 Specs
