551005 Festo Couplings

551005 on Powermatic Associates
Festo

Part#:551005

Alt. Part#:EAMC-42-50-12-19

Manufacturer:Festo

Category:Couplings

Product Lifecycle:Active

Product description

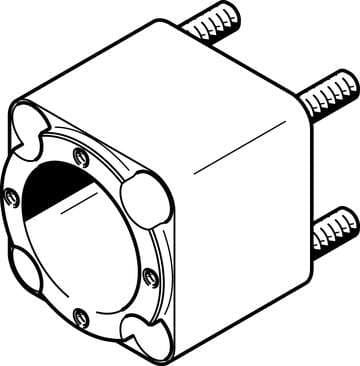

coupling EAMC-42-50-12-19 Holder diameter 1: 12 mm, Holder diameter 2: 19 mm, Size: 42, Nominal length: 50 mm, Assembly position: Any

Product Details

  • Storage temperature
    -25 °C ... 60 °C
  • Nominal length
    50 mm
  • Ambient temperature
    -25 °C ... 60 °C
  • Size
    42
  • Mounting position
    Any
  • Diameter of holder 2
    19 mm
  • Relative air humidity
    0 - 95 %
  • Mass moment of inertia
    34.8 kgmm²
  • Transferable torque
    17 Nm
  • Diameter of holder 1
    12 mm
  • Type code
    EAMC
  • Max. rotational speed
    6000 1/min
  • Product weight
    138 g
  • Note on materials
    RoHS-compliant

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

551005 Related Documents

551005 DataSheet.pdf

Manufacturer warranty

551005 Festo
