550505 Festo Compressed Air Preparation Units

550505 on Powermatic Associates
Festo

Part#:550505

Alt. Part#:MSB6N-1/2:C3J4D7A1F3-WP

Manufacturer:Festo

Category:Compressed Air Preparation Units

Product Lifecycle:Active

Product description

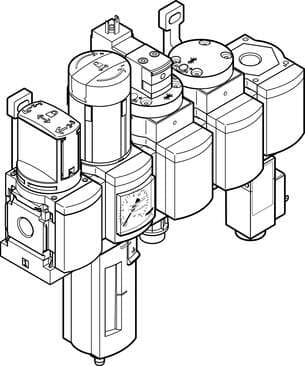

service unit combination MSB6N-1/2:C3J4D7A1F3-WP Comprising on-off valve, filter regulator, electrical on-off valve, pneumatic soft-start valve, branching module with pressure switch but without display, wall mounting plate. Maximum output pressure 9 bar,

Product Details

  • Design
    Branching module Filter regulator with pressure gauge
  • Pressure regulation range
    4 bar ... 9 bar
  • Standard nominal flow rate
    3000 l/min
  • Storage temperature
    -10 °C ... 60 °C
  • Pneumatic connection 1
    1/2 NPT
  • Housing material
    Die-cast aluminum
  • For use in the food industry
    See supplementary material information
  • Condensate drain
    Fully automatic
  • Controller function
    Outlet pressure constant With return flow function
  • Symbol
    00991760
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Air quality class at the output
    Compressed air as per ISO 8573-1:2010 [6:4:4]
  • Type code
    MSB6N
  • Mounting position
    Vertical +/- 5°
  • Coil characteristics
    24 V DC: 2.5 W
  • Product weight
    3500 g
  • Type of mounting
    With accessories
  • Size
    6
  • Series
    MS
  • Bowl guard
    Plastic bowl guard
  • Pressure gauge
    with pressure gauge
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
  • Temperature of medium
    5 °C ... 50 °C
  • Ambient temperature
    5 °C ... 50 °C
  • Material of bowl
    PC
  • Actuator lock
    Rotary knob with detent can be closed with accessories
  • Grade of filtration
    5 µm
  • Operating pressure
    4.5 bar ... 10 bar
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Pneumatic connection 2
    1/2 NPT
  • Pneumatic connection 3
    G1/2
  • Note on materials
    RoHS-compliant

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

550505 Related Documents

550505 DataSheet.pdf
