549683 Festo Quarter Turn Actuators
Part#:549683
Manufacturer:Festo
Alt. Part#:DAPS-0720-090-RS3-F14
Product Lifecycle:Active
Get a quick Quote!

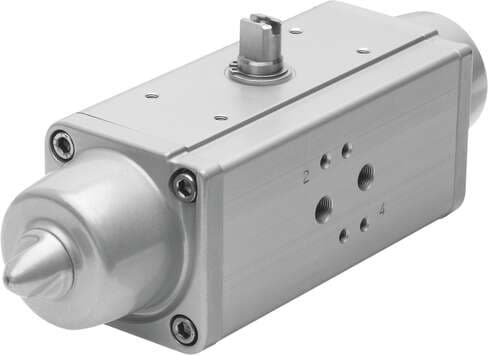

semi-rotary drive DAPS-0720-090-RS3-F14 Single-acting, air connection as per VDI/VDE 3845, Namur valves can be directly flange-mounted Size of actuator: 0720, Flange hole pattern: F14, Swivel angle: 90 deg, End-position adjustment range at 0°: -1 - 9 deg,
About the manufacturer: Festo is one of the manufacturers that offers Quarter Turn Actuators that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.
Check out the 549683 Festo price in the box on the right side or send a quick quote.
Product Details
- Size of valve actuator 0720
- Depth shaft connection 38.5 mm
- Standard connection for valve ISO 5211
- Safety integrity level (SIL) Up to SIL 2 high demand mode Up to SIL 2 low demand mode
- Connection pressure for spring force 4.2 bar
- ATEX category for dust II 2D
- End-position adjusting range at 0° -1 deg ... 9 deg
- End-position adjusting range at nominal swivel angle 81 deg ... 91 deg
- Cushioning No cushioning
- Closing direction Clockwise closing
- ATEX category gas II 2G
- Explosion prevention and protection Zone 1 (ATEX) Zone 22 (ATEX)
- Corrosion resistance class (CRC) 3 - High corrosion stress
- Spring return torque with 90° swivel angle 540 Nm
- Note on materials RoHS-compliant
- Housing material Wrought aluminum alloy
- Information on the end-position adjusting range One end position optionally adjustable
- Mounting position Any
- Nominal operating pressure 5.6 bar
- Explosive ambient temperature -20°C <= Ta <= +60°C
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Note about the torque The actuator's operating torque must not be higher than the maximum permissible torque listed in ISO 5211, based on the size of the mounting flange and the coupling.
- Spring return torque with 50° swivel angle 270 Nm
- Product weight 33000 g
- Cover material Wrought aluminum alloy
- Swivel angle 90 deg
- Mode of operation Single-acting
- Valve connection conforms to standard VDI/VDE 3845 (NAMUR)
- Position sensing None
- Type of (ignition) protection for dust Ex h IIIC T85°C...T200°C Db X
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Spring return torque at 0° swivel angle 360 Nm
- Torque at nominal operating pressure and 0° swivel angle 840 Nm
- Pneumatic connection G1/4
- Material of screws High-alloy steel
- Material number for shaft 1.4305
- Flange hole pattern F14
- Type code DAPS
- Design Scotch yoke system
- Symbol 00991266
- Operating pressure 4.2 bar ... 8.4 bar
- Type of ignition protection for gas Ex h IIC T6...T3 Gb X
- Ambient temperature -20 °C ... 80 °C
- Torque at nominal operating pressure and 50° swivel angle 450 Nm
- Spring force 3
- Shaft connection T36
- Seals material FPM PUR
- CE marking (see declaration of conformity) as per EU explosion protection directive (ATEX)
- Torque at nominal operating pressure and 90° swivel angle 660 Nm
- Air consumption at 6 bar per cycle 0°-nominal swivel angle-0° 29.4 l
- Shaft material High-alloy steel
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
