538226 Festo Cable Assemblies

Name: 538226
Brand: Festo

Part#:538226

Alt. Part#:NEBV-S1G25-K-5-N-LE25

Manufacturer:Festo

Category:Cable Assemblies

Product Lifecycle:Active

Product description

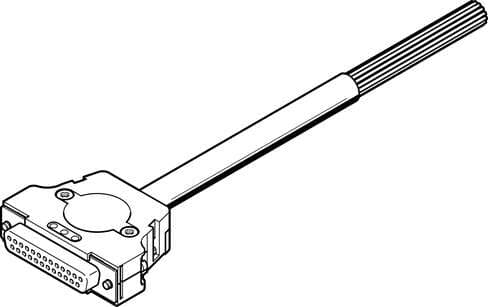

connecting cable NEBV-S1G25-K-5-N-LE25 For multi-pin plug connection to valve terminal VTUB, with Sub-D plug, 25-pin. Mounting type: 4-40 UNC-2B, Product weight: 910 g, Electrical connection 1: Socket sub-D, 25-pin, Electrical connection 2: Open end, 25-w

Product Details

Electrical connection 1
Sub-D socket, 25-pin
Nominal operating voltage DC
24 V
Cable design
20 x 0.25 mm² + 5 x 0.34 mm²
Ambient temperature with flexible cable installation
-5 °C ... 50 °C
Seals material
TPE-O
Type code
NEBV
Cable length
5 m
Degree of protection
IP65 In mounted state
Housing material
PBT
Product weight
910 g
Electrical connection 2
Open end, 25-wire
Cable characteristic
Standard
Note on materials
RoHS-compliant
Material of cable sheath
PVC
Type of mounting
4-40 UNC-2B
Min. cable bending radius
105 mm
Cable diameter
10.5 mm
Material of union nut
PA
Corrosion resistance class (CRC)
2 - Moderate corrosion stress

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

538226 Related Documents

538226 DataSheet.pdf

Similar products from: Festo Cable Assemblies

575419

Festo

connecting cable NEBV-S1G25-K-10-N-LE25-S6 Based on the standard: DIN 47100, Cable identification: Without inscription label holder, Connection frequency: 50, Product weight: 1820 g, Electrical connection 1, function: Field device side

3 in stock

550748

Festo

encoder cable NEBM-M12G8-E-5-S1G9 Suitable for servo motor EMMS-ST-... Cable identification: Without inscription label holder, Electrical connection 1, function: Field device side, Electrical connection 1, design: Round, Electrical connection 1, connectio

3 in stock

1450945

Festo

motor cable NEBM-S1W15-E-5-Q7-LE6 Suitable for servo motor EMMS-ST-... Cable identification: Without inscription label holder, Electrical connection 1, function: Field device side, Electrical connection 1, design: Angular, Electrical connection 1, connect

3 in stock

541344

Festo

connecting cable NEBU-M8W4-K-2.5-LE4 for proximity sensors, position transmitter, pressure switch, flow sensors, visual and inductive sensors. Conforms to standard: (* Core colours and connection numbers to EN 60947-5-2, * EN 61076-2-104), Cable identific

9 in stock

550326

Festo

connecting cable NEBU-M12G5-K-2.5-LE4 For SOPA air gap sensor. Conforms to standard: (* Core colours and connection numbers to EN 60947-5-2, * EN 61076-2-101), Cable identification: with 2x label holders, Product weight: 77 g, Electrical connection 1, fun

1 in stock

1450739

Festo

motor cable NEBM-S1W9-E-7-Q5-LE6 Suitable for servo motor EMMS-ST-... Cable identification: Without inscription label holder, Electrical connection 1, function: Field device side, Electrical connection 1, design: Angular, Electrical connection 1, connecti

3 in stock

Manufacturer warranty

538226 Festo

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare 538226 with other Cable Assemblies products

Electrical connection 1

Nominal operating voltage...

Cable design

Ambient temperature with ...

Seals material

Type code

Cable length

Degree of protection

Housing material

Product weight

Selected product

Backordered

538226

Festo

connecting cable NEBV-S1G25-K-5-N-LE25 For multi-pin plug connection to valve terminal VTUB, with Su...

Electrical connection 1Sub-D socket, 25-pin

Nominal operating voltage DC24 V

Cable design20 x 0.25 mm² + 5 x 0.34 mm²

Ambient temperature with flexible cable installation-5 °C ... 50 °C

Seals materialTPE-O

Type codeNEBV

Cable length5 m

Degree of protectionIP65 In mounted state

Housing materialPBT

Product weight910 g

3 in stock

1450945

Festo

motor cable NEBM-S1W15-E-5-Q7-LE6 Suitable for servo motor EMMS-ST-... Cable identification: Without...

Electrical connection 1-

Nominal operating voltage DC24 V

Cable design6 x 0.75 mm² Shielded

Ambient temperature with flexible cable installation-

Seals material-

Type codeNEBM

Cable length5 m

Degree of protectionIP65

Housing material-

Product weight-

3 in stock

575419

Festo

connecting cable NEBV-S1G25-K-10-N-LE25-S6 Based on the standard: DIN 47100, Cable identification: W...

Electrical connection 1-

Nominal operating voltage DC-

Cable design25 x 0.34 mm²

Ambient temperature with flexible cable installation-

Seals material-

Type codeNEBV

Cable length10 m

Degree of protectionIP40

Housing material-

Product weight1820 g

About the manufacturer

Powermatic Associates is an authorized Festo distributor, proudly offering a wide array of Festo's innovative industrial automation products and solutions. Festo is a globally recognized leader in automation technology and pneumatic solutions, renowned for their commitment to quality, efficiency, and sustainability. With a vast portfolio ranging from actuators, valves, sensors, and connectors to e...

Recently viewed products

CRDSNU-20-72-P-A-CS

Festo

Festo CRDSNU-20-72-P-A-CS is a pneumatic cylinder designed for mounting via accessories, featuring a high-alloy stainless steel cylinder barrel, cover, and piston rod. It operates within an ambient air temperature range of 0°C to +80°C and has a round cylindrical shape. This stainless steel double-acting single-ended round ISO pneumatic air cylinder falls under the CRDSNU series, with a design based on ISO6432. It includes built-in magnet elastic cushioning at both ends for unlubricated operation and allows for position sensing via a proximity sensor. The cylinder is double-acting, utilizing compressed air as per ISO8573-1;2010 [7;4;4] standards. It features an M8 male threaded rod and a 1/8" BSPP / G1/8" threaded pneumatic port for connections. The operating pressure range is +1 to +10bar, with a bore size of 20mm and a stroke length of 72mm.

0 in stock

MDI3CRL17C4-EQ-N

Novanta IMS

Novanta IMS MDI3CRL17C4-EQ-N is a stepper motor that features an integrated driver and operates as a 2-phase DC stepper motor. It is designed with an external single-end 512-line optical encoder, a rear control knob, and a triple (3) motor stack, enhanced by the Plus 2 version for expanded features. This motor utilizes a 16-pin locking wire crimp connector and a 10-pin friction-lock wire crimp connector for its connections. It supports RS-422 and RS-485 communication protocols. The supply voltage required for operation ranges from 12Vdc to 48Vdc, with an optimal performance at 24Vdc. It is mounted using a 42x42mm flange. The ambient air temperature suitable for its operation is between 0 and +85°C. This stepper motor is rated with a degree of protection of IP20, has a moment of inertia of 0.082kg.cm^2, a stall torque of 53N.cm, and offers a resolution characterized by a 1.8° step angle.

0 in stock

MDI4MRQ34B2-EQ

Novanta IMS

Novanta IMS MDI4MRQ34B2-EQ is a stepper motor within the Stepper motors sub-range, featuring an integrated driver and a 2-phase AC stepper motor design. It is equipped with an external single-end 512-line optical encoder and a double (2) motor stack, Plus 2 version for expanded features. The connection is facilitated through a 19-pin M23 male connector and a 5-pin M12 female connector, supporting RS-422 and RS-485 communication protocols. This stepper motor operates on a 240Vac supply voltage and is designed for mounting with an 85x85mm flange. It can operate in ambient air temperatures ranging from 0 to +85°C and has a degree of protection rated at IP65. The moment of inertia is specified at 1.6kg.cm2, with a stall torque of 353N.cm, and a resolution characterized by a 1.8° step angle.

0 in stock

LMHCE572C

Novanta IMS

Novanta IMS LMHCE572C is a stepper motor within the high-torque stepper motors sub-range, featuring an integrated driver and a high-torque DC stepper motor. It is designed with an incremental magnetic encoder, double (2) motor stack, and operates on closed-loop hMTechnology. The connection types include a 4-pin M12 male connector, a 12-pin M12 male connector, and a 5-pin M12 male connector, supporting Ethernet/IP and Modbus TCP communication protocols. The supply voltage ranges from 12Vdc to 60Vdc, with optimal performance at 24Vdc and 48Vdc. It is mounted via a 57x57mm flange and offers a degree of protection rated at IP65. The moment of inertia is 0.22kg.cm^2, with a stall torque of 186N.cm and a resolution of a 1.8° step angle.

0 in stock

61570882

SAB

SABIX A 157 FRNC - 16 AWG/1c, flame retardant halogen-free 1000V white hook-up wire, UL, CE, RoHS

0 in stock

ZB4BD3

Schneider Electric

Schneider Electric ZB4BD3 is a selector switch belonging to the XB4 sub-range, featuring a head with a standard handle. The bezel of this switch is chromium-plated and made of metal, presenting a round shape. It offers a high degree of protection with ratings of IP69K, NEMA 4X, and NEMA 13, ensuring its suitability for various industrial environments. The mechanical durability of this switch is rated at 1,000,000 operations at no load. It has a diameter of 22 mm and operates in a 3-position stay-put mode, with angular positions set at -45°, 0, and +45°.

0 in stock

CRDSNU-20-72-P-A-CS

Festo

0 in stock

MDI3CRL17C4-EQ-N

Novanta IMS

0 in stock

MDI4MRQ34B2-EQ

Novanta IMS

0 in stock

LMHCE572C

Novanta IMS

0 in stock

ZB4BD3

Schneider Electric

0 in stock

CRDSNU-20-72-P-A-CS

Festo

0 in stock

MDI3CRL17C4-EQ-N

Novanta IMS

0 in stock

Relevant products

538254

Verified stock: 0

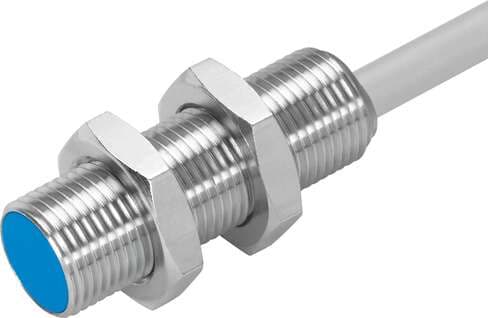

proximity sensor SIEH-M12B-NS-K-L-CR Inductive, for large switching distances. Conforms to standard: EN 60947-5-2, Authorisation: (* RCM Mark, * c UL us - Listed (OL)), CE mark (see declaration of conformity): to EU directive for EMC, Materials note: Free

Festo

538286

Verified stock: 0

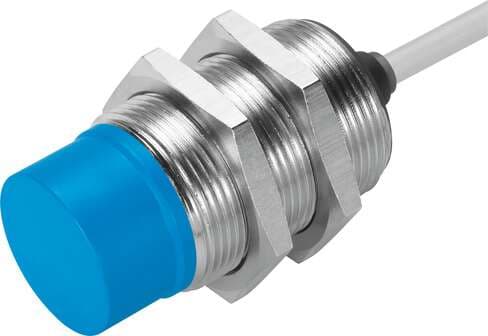

proximity sensor SIED-M30NB-ZO-K-L With cable, non-flush mounting Design: Round, Conforms to standard: EN 60947-5-2, Authorisation: (* RCM Mark, * c UL us - Listed (OL)), CE mark (see declaration of conformity): (* to EU directive for EMC, * to EU directi

Festo

538277

Verified stock: 0

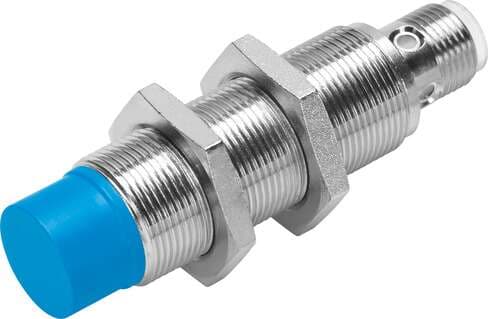

proximity sensor SIED-M18NB-ZO-S-L With plug, non-flush mounting Design: Round, Conforms to standard: EN 60947-5-2, Authorisation: (* RCM Mark, * c UL us - Listed (OL)), CE mark (see declaration of conformity): (* to EU directive for EMC, * to EU directiv
