534989 Festo Compressed Air Preparation Units

534989 on Powermatic Associates
Festo

Part#:534989

Alt. Part#:MS6N-LRPB-1/2-D5-A8

Manufacturer:Festo

Category:Compressed Air Preparation Units

Product Lifecycle:Active

Product description

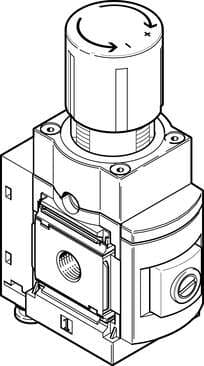

precision pressure regulator MS6N-LRPB-1/2-D5-A8 indirectly controlled regulators, working pressure up to 4 bar. Size: 6, Series: MS, Actuator lock: Rotary knob with lock, Assembly position: Any, Design structure: Piloted precision diaphragm regulator

Product Details

  • Series
    MS
  • Mounting position
    Any
  • Operating pressure
    0.1 MPa ... 1.4 MPa
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
  • Temperature of medium
    -10 °C ... 60 °C
  • Ambient temperature
    -10 °C ... 60 °C
  • Note on materials
    Free of copper and PTFE RoHS-compliant
  • Pressure gauge
    G1/8 prepared
  • Flow rate of secondary venting
    ≥ 650 l/min
  • Standard nominal flow rate
    ≥ 3000 l/min
  • Pneumatic connection 3
    G1/4
  • Size
    6
  • Design
    Pilot-controlled precision diaphragm regulator
  • Pressure regulation range
    0.1 bar ... 4 bar
  • Information on operating and pilot media
    Operation with oil lubrication not possible
  • Product weight
    1000 g
  • Pneumatic connection 1
    NPT1/2-14
  • Seals material
    NBR
  • Actuator lock
    Rotary knob with detent
  • Symbol
    00991973
  • Max. pressure hysteresis
    0.02 bar
  • Storage temperature
    -10 °C ... 60 °C
  • Type of mounting
    Optionally: With accessories
  • Housing material
    Aluminum
  • Type code
    MS6-LRPB
  • Controller function
    Outlet pressure constant With secondary exhausting
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Pneumatic connection 2
    NPT1/2-14

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

534989 Related Documents

534989 DataSheet.pdf
