533494 Festo Quarter Turn Actuators
Part#:533494
Manufacturer:Festo
Alt. Part#:DAPS-0960-090-RS3-F1216
Product Lifecycle:Active
Get a quick Quote!

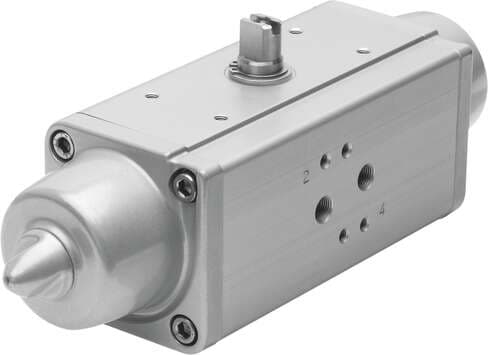

semi-rotary drive DAPS-0960-090-RS3-F1216 Single-acting, air connection as per VDI/VDE 3845, Namur valves can be directly flange-mounted Size of actuator: 0960, Flange hole pattern: (* F12, * F16), Swivel angle: 90 deg, End-position adjustment range at 0°
About the manufacturer: Festo is one of the manufacturers that offers Quarter Turn Actuators that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.
Check out the 533494 Festo price in the box on the right side or send a quick quote.
Product Details
- Flange hole pattern F12 F16
- Depth shaft connection 48.5 mm
- Cushioning No cushioning
- Closing direction Clockwise closing
- Operating pressure 4.2 bar ... 8.4 bar
- ATEX category for dust II 2D
- Ambient temperature -20 °C ... 80 °C
- Torque at nominal operating pressure and 50° swivel angle 600 Nm
- Product weight 42000 g
- Seals material FPM PUR
- Size of valve actuator 0960
- End-position adjusting range at nominal swivel angle 81 deg ... 91 deg
- Standard connection for valve ISO 5211
- Design Scotch yoke system
- Connection pressure for spring force 4.2 bar
- Safety integrity level (SIL) Up to SIL 2 high demand mode Up to SIL 2 low demand mode
- Explosive ambient temperature -20°C <= Ta <= +60°C
- CE marking (see declaration of conformity) as per EU explosion protection directive (ATEX)
- Note about the torque The actuator's operating torque must not be higher than the maximum permissible torque listed in ISO 5211, based on the size of the mounting flange and the coupling.
- Spring return torque with 50° swivel angle 360 Nm
- Shaft connection T46
- Housing material Wrought aluminum alloy
- Swivel angle 90 deg
- Type code DAPS
- Mounting position Any
- Symbol 00991266
- Nominal operating pressure 5.6 bar
- Type of (ignition) protection for dust Ex h IIIC T85°C...T200°C Db X
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Torque at nominal operating pressure and 0° swivel angle 1120 Nm
- Air consumption at 6 bar per cycle 0°-nominal swivel angle-0° 41.3 l
- Cover material Wrought aluminum alloy
- Material number for shaft 1.4305
- Information on the end-position adjusting range One end position optionally adjustable
- Position sensing None
- ATEX category gas II 2G
- Explosion prevention and protection Zone 1 (ATEX) Zone 22 (ATEX)
- Corrosion resistance class (CRC) 3 - High corrosion stress
- Spring return torque at 0° swivel angle 480 Nm
- Spring return torque with 90° swivel angle 720 Nm
- Pneumatic connection G1/4
- Material of screws High-alloy steel
- End-position adjusting range at 0° -1 deg ... 9 deg
- Mode of operation Single-acting
- Valve connection conforms to standard VDI/VDE 3845 (NAMUR)
- Type of ignition protection for gas Ex h IIC T6...T3 Gb X
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Torque at nominal operating pressure and 90° swivel angle 880 Nm
- Spring force 3
- Note on materials RoHS-compliant
- Shaft material High-alloy steel
