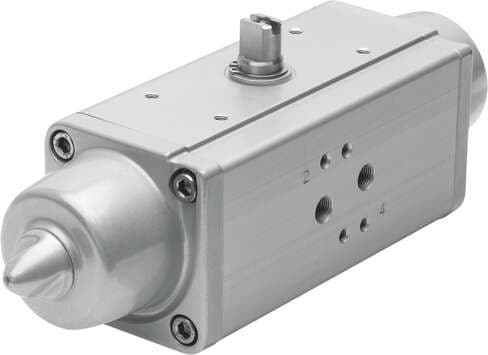

533456 Festo Quarter Turn Actuators
Part#:533456
Manufacturer:Festo
Alt. Part#:DAPS-0480-090-RS2-F1012
Product Lifecycle:Active
Get a quick Quote!
semi-rotary drive DAPS-0480-090-RS2-F1012 Single-acting, air connection as per VDI/VDE 3845, Namur valves can be directly flange-mounted Size of actuator: 0480, Flange hole pattern: (* F10, * F12), Swivel angle: 90 deg, End-position adjustment range at 0°
About the manufacturer: Festo is one of the manufacturers that offers Quarter Turn Actuators that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.
Check out the 533456 Festo price in the box on the right side or send a quick quote.
Product Details
- Information on the end-position adjusting range One end position optionally adjustable
- Standard connection for valve ISO 5211
- Closing direction Clockwise closing
- Connection pressure for spring force 3.5 bar
- Nominal operating pressure 5.6 bar
- ATEX category for dust II 2D
- CE marking (see declaration of conformity) as per EU explosion protection directive (ATEX)
- Spring return torque with 90° swivel angle 300 Nm
- Spring return torque at 0° swivel angle 200 Nm
- Housing material Wrought aluminum alloy
- Seals material FPM PUR
- End-position adjusting range at 0° -1 deg ... 9 deg
- Cushioning No cushioning
- Design Scotch yoke system
- ATEX category gas II 2G
- Ambient temperature -20 °C ... 80 °C
- Corrosion resistance class (CRC) 3 - High corrosion stress
- Torque at nominal operating pressure and 50° swivel angle 330 Nm
- Product weight 22700 g
- Shaft material High-alloy steel
- Flange hole pattern F10 F12
- Depth shaft connection 38.5 mm
- Mounting position Any
- Symbol 00991266
- Operating pressure 3.5 bar ... 8.4 bar
- Explosive ambient temperature -20°C <= Ta <= +60°C
- Explosion prevention and protection Zone 1 (ATEX) Zone 22 (ATEX)
- Torque at nominal operating pressure and 0° swivel angle 600 Nm
- Spring return torque with 50° swivel angle 150 Nm
- Shaft connection T36
- Note on materials RoHS-compliant
- Material of screws High-alloy steel
- Swivel angle 90 deg
- Type code DAPS
- Position sensing None
- Valve connection conforms to standard VDI/VDE 3845 (NAMUR)
- Type of (ignition) protection for dust Ex h IIIC T85°C...T200°C Db X
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Torque at nominal operating pressure and 90° swivel angle 500 Nm
- Spring force 2
- Pneumatic connection G1/4
- Material number for shaft 1.4305
- Size of valve actuator 0480
- End-position adjusting range at nominal swivel angle 81 deg ... 91 deg
- Mode of operation Single-acting
- Safety integrity level (SIL) Up to SIL 2 high demand mode Up to SIL 2 low demand mode
- Type of ignition protection for gas Ex h IIC T6...T3 Gb X
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Note about the torque The actuator's operating torque must not be higher than the maximum permissible torque listed in ISO 5211, based on the size of the mounting flange and the coupling.
- Air consumption at 6 bar per cycle 0°-nominal swivel angle-0° 19.6 l
- Cover material Wrought aluminum alloy
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
