Part#:533437

Manufacturer:Festo

Alt. Part#:DAPS-0053-090-RS3-F0507

Product Lifecycle:Active

Get a quick Quote!

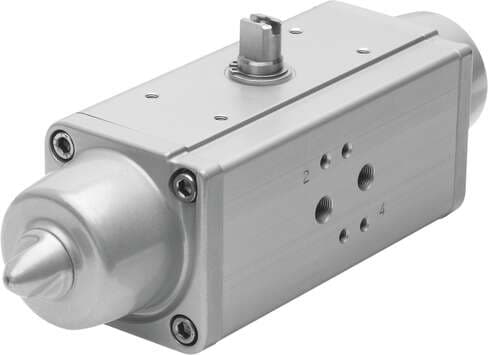

semi-rotary drive DAPS-0053-090-RS3-F0507 Single-acting, air connection as per VDI/VDE 3845, Namur valves can be directly flange-mounted Size of actuator: 0053, Flange hole pattern: (* F05, * F07), Swivel angle: 90 deg, End-position adjustment range at 0°

About the manufacturer: Festo is one of the manufacturers that offers Quarter Turn Actuators that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.

Check out the 533437 Festo price in the box on the right side or send a quick quote.

Product Details

  • End-position adjusting range at 0°
    -1 deg ... 9 deg
  • Cushioning
    No cushioning
  • Closing direction
    Clockwise closing
  • ATEX category gas
    II 2G
  • Size of valve actuator
    0053
  • Type code
    DAPS
  • Mounting position
    Any
  • Position sensing
    None
  • Operating pressure
    4.2 bar ... 8.4 bar
  • Nominal operating pressure
    5.6 bar
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Spring return torque at 0° swivel angle
    26 Nm
  • Spring force
    3
  • Shaft connection
    T17
  • Material of screws
    High-alloy steel
  • Flange hole pattern
    F05 F07
  • Information on the end-position adjusting range
    One end position optionally adjustable
  • Mode of operation
    Single-acting
  • Connection pressure for spring force
    4.2 bar
  • ATEX category for dust
    II 2D
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Corrosion resistance class (CRC)
    3 - High corrosion stress
  • Air consumption at 6 bar per cycle 0°-nominal swivel angle-0°
    2.1 l
  • Note on materials
    RoHS-compliant
  • Seals material
    FPM PUR
  • End-position adjusting range at nominal swivel angle
    81 deg ... 91 deg
  • Depth shaft connection
    19.3 mm
  • Design
    Scotch yoke system
  • Valve connection conforms to standard
    VDI/VDE 3845 (NAMUR)
  • Safety integrity level (SIL)
    Up to SIL 2 high demand mode Up to SIL 2 low demand mode
  • Ambient temperature
    -20 °C ... 80 °C
  • Explosion prevention and protection
    Zone 1 (ATEX) Zone 22 (ATEX)
  • Note about the torque
    The actuator's operating torque must not be higher than the maximum permissible torque listed in ISO 5211, based on the size of the mounting flange and the coupling.
  • Spring return torque with 90° swivel angle
    40 Nm
  • Product weight
    3000 g
  • Material number for shaft
    1.4305
  • Swivel angle
    90 deg
  • Standard connection for valve
    ISO 5211
  • Symbol
    00991266
  • Type of ignition protection for gas
    Ex h IIC T6...T3 Gb X
  • Explosive ambient temperature
    -20°C <= Ta <= +60°C
  • Torque at nominal operating pressure and 0° swivel angle
    62 Nm
  • Torque at nominal operating pressure and 50° swivel angle
    32.5 Nm
  • Cover material
    Wrought aluminum alloy
  • Housing material
    Wrought aluminum alloy
  • Type of (ignition) protection for dust
    Ex h IIIC T85°C...T200°C Db X
  • CE marking (see declaration of conformity)
    as per EU explosion protection directive (ATEX)
  • Torque at nominal operating pressure and 90° swivel angle
    48 Nm
  • Spring return torque with 50° swivel angle
    19.5 Nm
  • Pneumatic connection
    G1/8
  • Shaft material
    High-alloy steel
