533432 Festo Quarter Turn Actuators

533432 on Powermatic Associates
Festo

Part#:533432

Manufacturer:Festo

Alt. Part#:DAPS-0030-090-RS2-F04

Product Lifecycle:Active

Get a quick Quote!

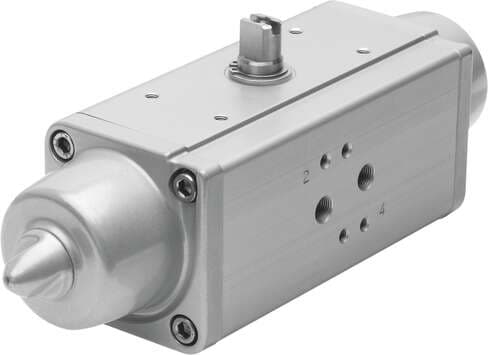

semi-rotary drive DAPS-0030-090-RS2-F04 Single-acting, air connection as per VDI/VDE 3845, Namur valves can be directly flange-mounted Size of actuator: 0030, Flange hole pattern: F04, Swivel angle: 90 deg, End-position adjustment range at 0°: -1 - 9 deg,

About the manufacturer: Festo is one of the manufacturers that offers Quarter Turn Actuators that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.

Check out the 533432 Festo price in the box on the right side or send a quick quote.

Product Details

  • End-position adjusting range at 0°
    -1 deg ... 9 deg
  • Information on the end-position adjusting range
    One end position optionally adjustable
  • Symbol
    00991266
  • ATEX category gas
    II 2G
  • Type of (ignition) protection for dust
    Ex h IIIC T85°C...T200°C Db X
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Torque at nominal operating pressure and 50° swivel angle
    20.7 Nm
  • Spring return torque with 50° swivel angle
    9.4 Nm
  • Product weight
    1950 g
  • Cover material
    Wrought aluminum alloy
  • Shaft material
    High-alloy steel
  • Swivel angle
    90 deg
  • Depth shaft connection
    16.5 mm
  • Mounting position
    Any
  • Closing direction
    Clockwise closing
  • Operating pressure
    3.5 bar ... 8.4 bar
  • Explosive ambient temperature
    -20°C <= Ta <= +60°C
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Torque at nominal operating pressure and 0° swivel angle
    37.6 Nm
  • Spring return torque at 0° swivel angle
    12.5 Nm
  • Air consumption at 6 bar per cycle 0°-nominal swivel angle-0°
    1.19 l
  • Note on materials
    RoHS-compliant
  • Material of screws
    High-alloy steel
  • Flange hole pattern
    F04
  • End-position adjusting range at nominal swivel angle
    81 deg ... 91 deg
  • Cushioning
    No cushioning
  • Mode of operation
    Single-acting
  • Valve connection conforms to standard
    VDI/VDE 3845 (NAMUR)
  • Type of ignition protection for gas
    Ex h IIC T6...T3 Gb X
  • Explosion prevention and protection
    Zone 1 (ATEX) Zone 22 (ATEX)
  • Note about the torque
    The actuator's operating torque must not be higher than the maximum permissible torque listed in ISO 5211, based on the size of the mounting flange and the coupling.
  • Pneumatic connection
    G1/8
  • Standard connection for valve
    ISO 5211
  • Design
    Scotch yoke system
  • Safety integrity level (SIL)
    Up to SIL 2 high demand mode Up to SIL 2 low demand mode
  • Connection pressure for spring force
    3.5 bar
  • Ambient temperature
    -20 °C ... 80 °C
  • Corrosion resistance class (CRC)
    3 - High corrosion stress
  • Spring force
    2
  • Seals material
    FPM PUR
  • Material number for shaft
    1.4305
  • Size of valve actuator
    0030
  • Type code
    DAPS
  • Position sensing
    None
  • Nominal operating pressure
    5.6 bar
  • ATEX category for dust
    II 2D
  • CE marking (see declaration of conformity)
    as per EU explosion protection directive (ATEX)
  • Torque at nominal operating pressure and 90° swivel angle
    31.3 Nm
  • Spring return torque with 90° swivel angle
    18.8 Nm
  • Shaft connection
    T14
  • Housing material
    Wrought aluminum alloy

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
