533430 Festo Quarter Turn Actuators
Part#:533430
Manufacturer:Festo
Alt. Part#:DAPS-0015-090-RS4-F0305
Product Lifecycle:Active
Get a quick Quote!

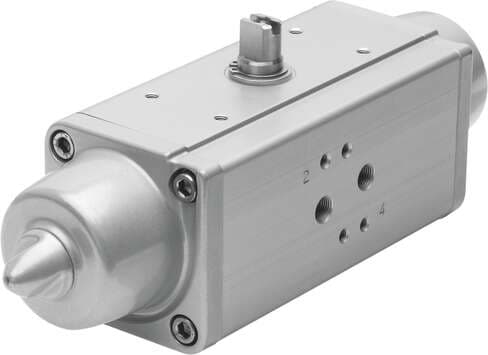

semi-rotary drive DAPS-0015-090-RS4-F0305 Single-acting, air connection as per VDI/VDE 3845, Namur valves can be directly flange-mounted Size of actuator: 0015, Flange hole pattern: (* F03, * F05), Swivel angle: 90 deg, End-position adjustment range at 0°
About the manufacturer: Festo is one of the manufacturers that offers Quarter Turn Actuators that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.
Check out the 533430 Festo price in the box on the right side or send a quick quote.
Product Details
- End-position adjusting range at 0° -1 deg ... 9 deg
- Information on the end-position adjusting range One end position optionally adjustable
- Mounting position Any
- Symbol 00991266
- Nominal operating pressure 5.6 bar
- Type of (ignition) protection for dust Ex h IIIC T85°C...T200°C Db X
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Torque at nominal operating pressure and 90° swivel angle 10 Nm
- Spring return torque with 50° swivel angle 7.5 Nm
- Shaft connection T11
- Material of screws High-alloy steel
- Standard connection for valve ISO 5211
- Position sensing None
- Connection pressure for spring force 5.6 bar
- Type of ignition protection for gas Ex h IIC T6...T3 Gb X
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- CE marking (see declaration of conformity) as per EU explosion protection directive (ATEX)
- Spring return torque with 90° swivel angle 15 Nm
- Pneumatic connection G1/8
- Seals material FPM PUR
- Swivel angle 90 deg
- Type code DAPS
- Cushioning No cushioning
- Closing direction Clockwise closing
- Operating pressure 5.6 bar ... 8.4 bar
- ATEX category for dust II 2D
- Ambient temperature -20 °C ... 80 °C
- Torque at nominal operating pressure and 50° swivel angle 7.5 Nm
- Air consumption at 6 bar per cycle 0°-nominal swivel angle-0° 0.63 l
- Note on materials RoHS-compliant
- Shaft material High-alloy steel
- Size of valve actuator 0015
- End-position adjusting range at nominal swivel angle 81 deg ... 91 deg
- Mode of operation Single-acting
- Valve connection conforms to standard VDI/VDE 3845 (NAMUR)
- ATEX category gas II 2G
- Explosion prevention and protection Zone 1 (ATEX) Zone 22 (ATEX)
- Corrosion resistance class (CRC) 3 - High corrosion stress
- Note about the torque The actuator's operating torque must not be higher than the maximum permissible torque listed in ISO 5211, based on the size of the mounting flange and the coupling.
- Product weight 1200 g
- Cover material Wrought aluminum alloy
- Material number for shaft 1.4305
- Flange hole pattern F03 F05
- Depth shaft connection 13.2 mm
- Design Scotch yoke system
- Safety integrity level (SIL) Up to SIL 2 high demand mode Up to SIL 2 low demand mode
- Explosive ambient temperature -20°C <= Ta <= +60°C
- Torque at nominal operating pressure and 0° swivel angle 15 Nm
- Spring return torque at 0° swivel angle 10 Nm
- Spring force 4
- Housing material Wrought aluminum alloy
