533423 Festo Quarter Turn Actuators

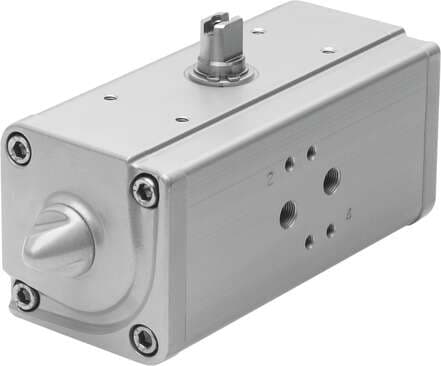

Festo 533423 semi-rotary drive DAPS-0360-090-R-F0710 Double-acting, air connection as per VDI/VDE 3845, Namur valves can be directly flange-mounted Size of actuator: 0360, Flange hole pattern: (* F07, * F10), Swivel angle: 90 deg, End-position adjustment range at 0°:
Festo

Part#:533423

Manufacturer:Festo

Alt. Part#:DAPS-0360-090-R-F0710

Product Lifecycle:Active

Get a quick Quote!

semi-rotary drive DAPS-0360-090-R-F0710 Double-acting, air connection as per VDI/VDE 3845, Namur valves can be directly flange-mounted Size of actuator: 0360, Flange hole pattern: (* F07, * F10), Swivel angle: 90 deg, End-position adjustment range at 0°:

About the manufacturer: Festo is one of the manufacturers that offers Quarter Turn Actuators that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.

Check out the 533423 Festo price in the box on the right side or send a quick quote.

Product Details

  • Type code
    DAPS
  • Flange hole pattern
    F07 F10
  • Design
    Scotch yoke system
  • Symbol
    00991265
  • Explosion prevention and protection
    Zone 1 (ATEX) Zone 22 (ATEX)
  • CE marking (see declaration of conformity)
    as per EU explosion protection directive (ATEX)
  • Air consumption at 6 bar per cycle 0°-nominal swivel angle-0°
    12.6 l
  • Shaft connection
    T22
  • End-position adjusting range at 0°
    -1 deg ... 9 deg
  • Mounting position
    Any
  • Closing direction
    Clockwise closing
  • Nominal operating pressure
    5.6 bar
  • ATEX category for dust
    II 2D
  • Explosive ambient temperature
    -20°C <= Ta <= +60°C
  • Note about the torque
    The actuator's operating torque must not be higher than the maximum permissible torque listed in ISO 5211, based on the size of the mounting flange and the coupling.
  • Note on materials
    RoHS-compliant
  • Housing material
    Wrought aluminum alloy
  • Mode of operation
    Double-acting
  • Valve connection conforms to standard
    VDI/VDE 3845 (NAMUR)
  • ATEX category gas
    II 2G
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class (CRC)
    3 - High corrosion stress
  • Product weight
    6500 g
  • Shaft material
    High-alloy steel
  • Size of valve actuator
    0360
  • Depth shaft connection
    24.3 mm
  • Cushioning
    No cushioning
  • Position sensing
    None
  • Operating pressure
    1 bar ... 8.4 bar
  • Ambient temperature
    -20 °C ... 80 °C
  • Type of (ignition) protection for dust
    Ex h IIIC T85°C...T200°C Db X
  • Torque at nominal operating pressure and 0° swivel angle
    360 Nm
  • Torque at nominal operating pressure and 90° swivel angle
    270 Nm
  • Pneumatic connection
    G1/8
  • Seals material
    FPM PUR
  • Material number for shaft
    1.4305
  • Swivel angle
    90 deg
  • Standard connection for valve
    ISO 5211
  • Safety integrity level (SIL)
    Up to SIL 2 high demand mode Up to SIL 2 low demand mode
  • Type of ignition protection for gas
    Ex h IIC T6...T3 Gb X
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Torque at nominal operating pressure and 50° swivel angle
    180 Nm
  • Cover material
    Wrought aluminum alloy
  • Material of screws
    High-alloy steel

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
