531306 Festo Compressed Air Preparation Units

531306 on Powermatic Associates
Festo

Part#:531306

Alt. Part#:MS6N-LFR-1/2-D6-CRM-AS

Manufacturer:Festo

Category:Compressed Air Preparation Units

Product Lifecycle:Active

Product description

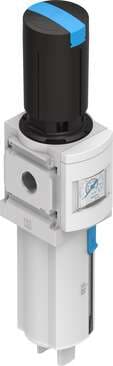

filter regulator MS6N-LFR-1/2-D6-CRM-AS 7 bar maximum output pressure, 5 µm filter, with pressure gauge, lockable regulator head, plastic bowl with plastic bowl guard, manual condensate drain, direction of flow: from left to right. Size: 6, Series: MS, Ac

Product Details

  • For use in the food industry
    See supplementary material information
  • Grade of filtration
    5 µm
  • Bowl guard
    Plastic bowl guard
  • Standard nominal flow rate
    5600 l/min
  • Storage temperature
    -10 °C ... 60 °C
  • Type of mounting
    Optionally: With accessories
  • Material of operator panel
    PA POM
  • Material of bowl
    PC
  • Actuator lock
    Rotary knob with detent can be closed with accessories
  • Design
    Filter regulator with pressure gauge
  • Pressure gauge
    with pressure gauge
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [-:4:-] Inert gas
  • Ambient temperature
    -10 °C ... 60 °C
  • Pneumatic connection 1
    1/2 NPT
  • Compressed air filter material
    PE
  • Housing material
    Die-cast aluminum
  • Series
    MS
  • Controller function
    Outlet pressure constant With secondary exhausting
  • Pressure regulation range
    0.3 bar ... 7 bar
  • Air quality class at the output
    Compressed air as per ISO 8573-1:2010 [6:4:4]
  • Note on materials
    RoHS-compliant
  • Type code
    MS6N-LFR
  • Condensate drain
    Manually rotating
  • Max. condensate volume
    38 ml
  • Operating pressure
    0.8 bar ... 20 bar
  • Temperature of medium
    -10 °C ... 60 °C
  • Seals material
    NBR
  • Separating disc material
    POM
  • Size
    6
  • Mounting position
    Vertical +/- 5°
  • Symbol
    00991589
  • Max. pressure hysteresis
    0.25 bar
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Product weight
    875 g
  • Pneumatic connection 2
    1/2 NPT
  • Diaphragm material
    NBR

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

531306 Related Documents

531306 DataSheet.pdf
