530048 Festo Cable Assemblies

Name: 530048
Brand: Festo

Part#:530048

Manufacturer:Festo

Alt. Part#:KMP6-25P-20-10

Product Lifecycle:Active

Get a quick Quote!

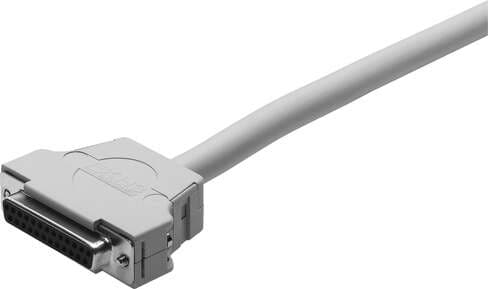

connecting cable KMP6-25P-20-10 For valve terminal CPV-SC, with 25-pin Sub-D plug for 20 coils, 10 m long. Conforms to standard: DIN 41652, Cable identification: Without inscription label holder, Connection frequency: 50, Product weight: 1600 g, Electrica

About the manufacturer: Festo is one of the manufacturers that offers Cable Assemblies that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.

Check out the 530048 Festo price in the box on the right side or send a quick quote.

Product Details

Contamination level
2
Contact durability
50
Electrical connection 1, connection technology
Sub-D
Electrical connection 2, number of pins/wires
25
Cable characteristic
Standard
Cable design
20 x 0.25 mm² + 5 x 0.34 mm²
Conforms to standard
DIN 41652
Electrical connection 1, function
Field device end
Electrical connection 1, occupied pins/wires
25
Electrical connection 2, function
Control side
Cable designation
Without label holder
Electrical connection 1, design
Rectangular
Electrical connection 1, connection type
Socket
Electrical connection 2, connection type
Cable
Electrical connection 2, connection technology
Open end
Bending radius, fixed cable installation
≥ 103 mm
Cable diameter tolerance
± 0.25 mm
Wire ends
Cut off bluntly
Note on materials
RoHS-compliant
Electrical connection 1, cable outlet
Straight

Electrical connection 1, type of mounting

2x screw, 4-40 UNC

Electrical connection 2, occupied pins/wires

Current rating at 40°C

2.8 A

Cable diameter

10.3 mm

Note on degree of protection

In mounted state

CE marking (see declaration of conformity)

As per EU RoHS directive

Color cable sheath

Gray

Type code

KMP6

Product weight

1600 g

Electrical connection 1, number of pins/wires

Electrical connection for input 1, connection pattern

00995642

DC operating voltage range

0 V ... 30 V

Surge resistance

1 kV

Bending radius, flexible cable installation

≥ 103 mm

Nominal conductor cross section

0.34 mm² 0.25 mm²

Ambient temperature

-25 °C ... 70 °C

Material of cable sheath

PVC

Housing material

PBT-reinforced

Material of pin contacts

Copper alloy, gold-plated

Nominal operating voltage DC

24 V

Cable length

10 m

Connector cable test conditions

Test conditions on request

Degree of protection

IP40

Ambient temperature with flexible cable installation

-5 °C ... 70 °C

Storage temperature

-25 °C ... 75 °C

Housing colour

Gray

Material of screw-type lock

Brass, nickel-plated

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Relevant products

1707427

Verified stock: 8

silencer UC-3/8 Assembly position: Any, Container size: 1, Operating pressure: 0 - 10 bar, Flow rate to atmosphere: 5000 l/min, Operating medium: Compressed air in accordance with ISO8573-1:2010 [7:-:-]

Festo

530040

Verified stock: 2

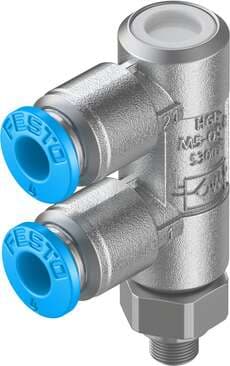

Piloted check valve HGL-1/8-QS-6 With sealing ring OL, with QS push-in fitting. Valve function: piloted non-return function, Pneumatic connection, port 1: QS-6, Pneumatic connection, port 2: G1/8, Type of actuation: pneumatic, Pilot air port 21: M5
