529671 Festo Compressed Air Preparation Units

529671 on Powermatic Associates
Festo

Part#:529671

Alt. Part#:MS6-LFM-3/8-ARM

Manufacturer:Festo

Category:Compressed Air Preparation Units

Product Lifecycle:Active

Product description

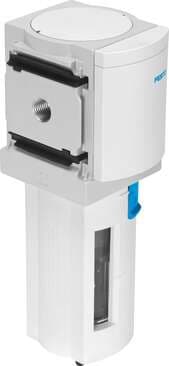

micro filter MS6-LFM-3/8-ARM 0.01 µm filter, plastic bowl with plastic bowl guard, manual condensate drain, direction of flow: from left to right. Series: MS, Size: 6, Design structure: Fibre filter, Grade of filtration: 0,01 µm, Condensate drain: manual

Product Details

  • Grade of filtration
    0.01 µm
  • Type code
    MS6-LFM
  • Max. standard flow rate for air quality class
    900 l/min
  • Max. condensate volume
    38 ml
  • Type of mounting
    Optionally: With accessories
  • Housing material
    Die-cast aluminum
  • Compressed air filter material
    Borosilicate fiber
  • Size
    6
  • Symbol
    00991519
  • Filter efficiency
    99.9999 %
  • Ambient temperature
    -10 °C ... 60 °C
  • Storage temperature
    -10 °C ... 60 °C
  • Pneumatic connection 1
    G3/8
  • Note on materials
    Free of copper and PTFE RoHS-compliant
  • Design
    Fiber filter
  • Air quality class at the output
    Compressed air as per ISO 8573-1:2010 [1:7:2]
  • Min. standard flow rate for air quality class
    135 l/min
  • Temperature of medium
    -10 °C ... 60 °C
  • Seals material
    NBR
  • Series
    MS
  • Condensate drain
    Manually rotating
  • Operating pressure
    0 bar ... 20 bar
  • Bowl guard
    Plastic bowl guard
  • Residual oil content
    0.01 mg/m³
  • Pneumatic connection 2
    G3/8
  • Product weight
    600 g
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [6:8:4] Inert gas
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Mounting position
    Vertical +/- 5°
  • Material of bowl
    PC
  • For use in the food industry
    See supplementary material information

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
