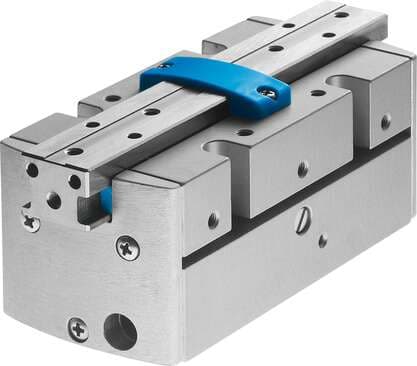

525661 Festo Grippers

Product Details

• Size
  25
• Number of gripper jaws
  2
• Position sensing
  For Hall sensor For inductive proximity sensors
• Design
  Gear rack/pinion
• Min. opening time at 6 bar
  64 ms
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• Type of mounting
  With internal thread
• Gripper jaw material
  Wrought aluminum alloy Nickel-plated
• Max. interchangeability
  0.1 mm
• Max. operating frequency of pneumatic gripper
  4 Hz
• Gripping force per gripper jaw at 6 bar, opening
  250 N
• Gripping force per gripper jaw at 6 bar, closing
  250 N
• Cover cap material
  POM
• Stroke per gripper jaw
  10 mm
• Type code
  HGPP
• Total gripping force at 6 bar, opening
  500 N
• Operating pressure
  2 bar ... 8 bar
• Information on operating and pilot media
  Operation with oil lubrication possible (required for further use)
• Maximum force on gripper jaw Fz, static
  380 N
• Maximum torque on gripper jaw, Mz static
  21 Nm
Max. mass per external gripper finger
250 g
Pneumatic gripper repetition accuracy
≤ 0.02 mm
Gripper function
Parallel
Symbol
00991894
Min. closing time at 6 bar
92 ms
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Maximum torque on gripper jaw, Mx static
21 Nm
Product weight
884 g
Note on materials
Free of copper and PTFE
Mode of operation
Double-acting
Total gripping force at 6 bar, closing
500 N
Ambient temperature
5 °C ... 60 °C
Maximum torque on gripper jaw, My static
21 Nm
Pneumatic connection
M5
Housing material
Wrought aluminum alloy Hard-anodized
