4834292 Festo Ball Valves
Part#:4834292
Alt. Part#:VZBE-1-T-63-F-3L-F05-V15V15
Manufacturer:Festo
Category:Ball Valves
Product Lifecycle:Active
Product description

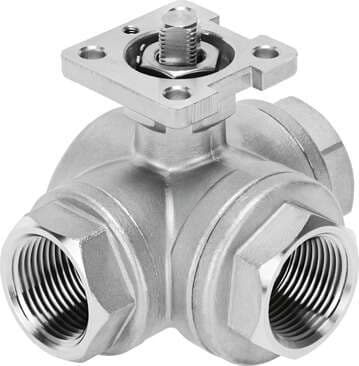

ball valve VZBE-1-T-63-F-3L-F05-V15V15 Stainless steel, 3/2-way, nominal width 1", top flange F05, PN63, ASME B1.20.1 - NPT. Design structure: (* 3-way ball valve, * L hole), Type of actuation: mechanical, Sealing principle: soft, Assembly position: Any,
Product Details
- Actuation type Mechanical
- Flange hole pattern F05
- Switching position indication Slot direction = flow direction
- Symbol 00991888
- Note on materials Contains paint-wetting impairment substances RoHS-compliant
- Product weight 1618 g
- Design 3-way ball valve Drilled L hole
- Fitting connection 1 NPT
- Nominal pressure of fitting PN 63
- Medium Vapor Neutral liquids
- Material number of housing 1.4408
- Certification CRN
- Seat seal material PTFE
- Mounting position Any
- Inside diameter 20 mm
- Based on norm ASME B1.20.1 ISO 5211
- Temperature of medium -20 °C ... 200 °C
- Seals material PTFE
- Material number for shaft 1.4401
- Shaft material High-alloy stainless steel
- Explosion prevention and protection Zone 1 (ATEX) Zone 22 (ATEX)
- Sealing principle Soft
- Nominal width DN 25
- Breakaway torque at differential pressure, nominal pressure, fitting PN 25.2 Nm
- Flow rate Kv type L 4.1 m³/h
- Material number for ball 1.4408
- Corrosion resistance class (CRC) 4 - Particularly high corrosion stress
- Type code VZBE
- Type of mounting Line installation
- Flow direction Reversible
- Valve function 3/2
- Housing material Cast stainless steel
- Ball material Cast stainless steel
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
