4834290 Festo Ball Valves
Part#:4834290
Alt. Part#:VZBE-1/2-T-63-F-3L-F04-V15V15
Manufacturer:Festo
Category:Ball Valves
Product Lifecycle:Active
Product description

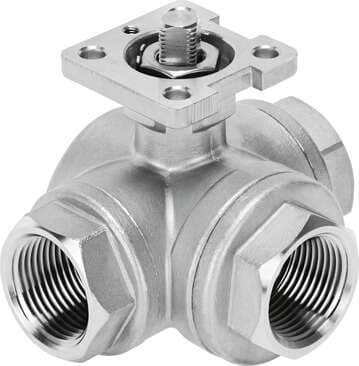

ball valve VZBE-1/2-T-63-F-3L-F04-V15V15 Stainless steel, 3/2-way, nominal width 1/2", top flange F04, PN63, ASME B1.20.1 - NPT. Design structure: (* 3-way ball valve, * L hole), Type of actuation: mechanical, Sealing principle: soft, Assembly position: A
Product Details
- Inside diameter 12.7 mm
- Nominal pressure of fitting PN 63
- Type code VZBE
- Design 3-way ball valve Drilled L hole
- Mounting position Any
- Nominal width DN 15
- Seat seal material PTFE
- Type of mounting Line installation
- Flow direction Reversible
- Note on materials Contains paint-wetting impairment substances RoHS-compliant
- Material number of housing 1.4408
- Material number for shaft 1.4401
- Certification CRN
- Actuation type Mechanical
- Switching position indication Slot direction = flow direction
- Fitting connection 1/2 NPT
- Based on norm ASME B1.20.1 ISO 5211
- Temperature of medium -20 °C ... 200 °C
- Seals material PTFE
- Material number for ball 1.4408
- Sealing principle Soft
- Flange hole pattern F04
- Breakaway torque at differential pressure, nominal pressure, fitting PN 9.6 Nm
- Medium Vapor Neutral liquids
- Flow rate Kv type L 2.5 m³/h
- Ball material Cast stainless steel
- Corrosion resistance class (CRC) 4 - Particularly high corrosion stress
- Valve function 3/2
- Symbol 00991888
- Shaft material High-alloy stainless steel
- Product weight 624 g
- Housing material Cast stainless steel
- Explosion prevention and protection Zone 1 (ATEX) Zone 22 (ATEX)
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
