4762854 Festo Ball Valves

4762854 on Powermatic Associates
Festo

Part#:4762854

Alt. Part#:VZBD-4-W1-16-T-2-F1012-V14V14

Manufacturer:Festo

Category:Ball Valves

Product Lifecycle:Active

Product description

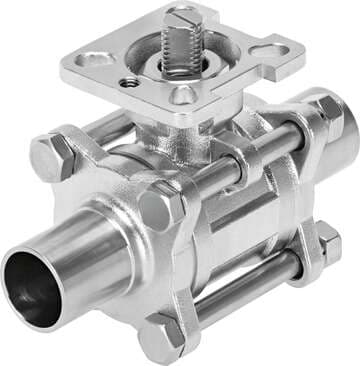

ball valve VZBD-4-W1-16-T-2-F1012-V14V14 Stainless steel for use in cosmetics and the pharmaceuticals industry, 2/2-way, nominal width 4", top flange F1012, PN16, welded ends to ASME-BPE, electropolished. Design structure: 2-way ball valve, Type of actuat

Product Details

  • Actuation type
    Mechanical
  • Switching position indication
    Slot direction = flow direction
  • Inside diameter
    97.5 mm
  • Seals material
    FPM PTFE
  • Product weight
    16180 g
  • Explosion prevention and protection
    Zone 1 (ATEX) Zone 22 (ATEX)
  • Seat seal material
    PTFE, modified
  • Fitting connection
    Weld-on end as per ASME-BPE
  • Flange hole pattern
    F1012
  • Breakaway torque at differential pressure, nominal pressure, fitting PN
    170 Nm
  • Medium
    Vapor Neutral liquids
  • For use in the food industry
    See supplementary material information
  • Material number for ball
    1.4409
  • CE marking (see declaration of conformity)
    as per EU pressure equipment directive
  • Type of mounting
    Line installation
  • Flow direction
    Reversible
  • Nominal pressure of fitting PN
    16
  • Temperature of medium
    -20 °C ... 200 °C
  • Housing material
    Cast stainless steel
  • Shaft material
    High-alloy stainless steel
  • Material number for shaft
    1.4401
  • Type code
    VZBD
  • Sealing principle
    Soft
  • Valve function
    2/2
  • Symbol
    00991458
  • Flow rate Kv
    436.3 m³/h
  • Material number of housing
    1.4409
  • Certification
    3-A sanitary CRN
  • Design
    2-way ball valve
  • Mounting position
    Any
  • Nominal width DN
    100
  • Based on norm
    ASME BPE ISO 5211
  • Note on materials
    Contains paint-wetting impairment substances RoHS-compliant
  • Ball material
    Cast stainless steel
  • Corrosion resistance class (CRC)
    4 - Particularly high corrosion stress

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
