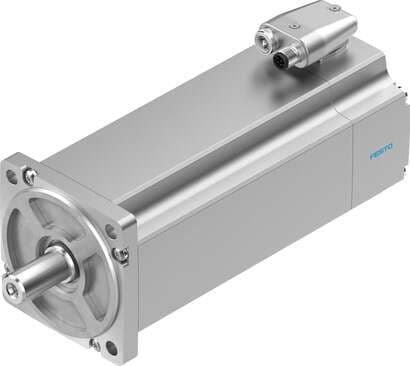

4267579 Festo Servo Motors

Name: 4267579
Brand: Festo

Part#:4267579

Manufacturer:Festo

Alt. Part#:EMME-AS-60-MK-LS-AMXB

Product Lifecycle:Active

Get a quick Quote!

servo motor EMME-AS-60-MK-LS-AMXB Without gear unit/with brake. Ambient temperature: -10 - 40 °C, Storage temperature: -20 - 70 °C, Relative air humidity: 0 - 90 %, Conforms to standard: IEC 60034, Insulation protection class: F

About the manufacturer: Festo is one of the manufacturers that offers Servo Motors that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.

Check out the 4267579 Festo price in the box on the right side or send a quick quote.

Product Details

Rotor position sensor
Safety encoder, absolute multi-turn
Safety Integrity Level (SIL), subcomponent
SIL 2, rotor position sensor SILCL 2, rotor position sensor
Max. rotational speed
4925 1/min
Motor nominal power
380 W
Number of pole pairs
3
Rotor position sensor measuring principle
Optical
Continuous stall current
1.8 A
Brake power consumption
11 W
Type of winding switch
Star inside
Rating class according to EN 60034-1
S1
Relative air humidity
0 - 90 %
Total output inertia moment
0.512 kgcm²
Permissible axial shaft load
54 N
Switching cycles, holding brake
5 million idle actuations (without friction work!)
Conforms to standard
IEC 60034
Rotor position sensor interface
HIPERFACE®
Performance Level (PL), subcomponent
Category 3, performance level d, rotor position encoder
Nominal rotary speed
3000 1/min
Motor constants
0.8 Nm/A
Motor nominal current
1.5 A

Rotor position encoder, typical angular accuracy

20 arcmin

Peak current

7.2 A

Storage temperature

-20 °C ... 70 °C

Certification

RCM compliance mark c UL us - Recognized (OL)

Peak torque

6 Nm

MTTFd, subcomponent

874 years, rotor position sensor

Product weight

2200 g

Type code

EMME-AS

PFHd, subcomponent

1.3 x 10E-8, rotor position sensor

Insulation protection class

DC nominal voltage

360 V

Winding inductance phase-phase

16.8 mH

Voltage constant, phase-to-phase

51.7 mVmin

Brake mass moment of inertia

0.086 kgcm²

Stall torque

1.5 Nm

Electrical connection technology

Plug

Duration of use Tm, subcomponent

20 years, rotor position sensor

Brake DC operating voltage

24 V

Nominal operating voltage DC

360 V

Typical rotor position sensor resolution

15 bit

Phase-phase winding resistance

9.8 Ohm

Corrosion resistance class (CRC)

0 - No corrosion stress

Brake holding torque

2 Nm

MTTF, subcomponent

538 years, holding brake

Note on materials

Contains paint-wetting impairment substances RoHS-compliant

Rotor position encoder, sinusoidal/cosinusoidal periods per revolution

128

CE marking (see declaration of conformity)

As per EU EMC directive As per EU low voltage directive

Degree of protection

IP21

Ambient temperature

-10 °C ... 40 °C

Nominal torque

1.2 Nm

Permissible radial shaft load

270 N

Featherkey shaft design

DIN 6885 A 5 x 5 x 22

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
