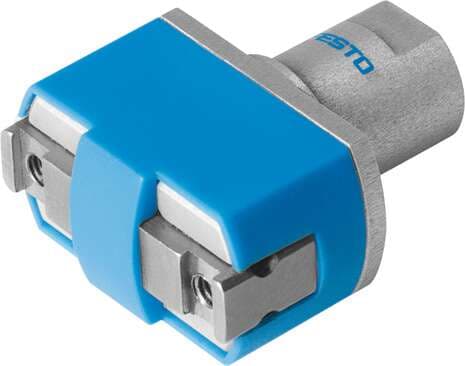

197569 Festo Grippers

Product Details

• Size
  12
• Type code
  HGPM
• Gripper function
  Parallel
• Number of gripper jaws
  2
• Design
  Inclined plane
• Symbol
  00991898
• Corrosion resistance class (CRC)
  1 - Low corrosion stress
• Product weight
  41 g
• Cover cap material
  POM
• Max. interchangeability
  0.2 mm
• Pneumatic gripper repetition accuracy
  ≤ 0.05 mm
• Total gripping force at 6 bar, closing
  35 N
• Min. opening time at 6 bar
  3 ms
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• Maximum force on gripper jaw Fz, static
  30 N
• Maximum torque on gripper jaw, My static
  0.5 Nm
• Type of mounting
  Clamped
• Gripper jaw material
  High-alloy steel
• Rotational symmetry
  0.15 mm
• Position sensing
  None
Operating pressure
4 bar ... 8 bar
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Ambient temperature
5 °C ... 60 °C
Maximum torque on gripper jaw, Mz static
0.5 Nm
Note on materials
Free of copper and PTFE
Stroke per gripper jaw
3 mm
Mode of operation
Single-acting Closed
Max. operating frequency of pneumatic gripper
4 Hz
Min. closing time at 6 bar
8.3 ms
Gripping force per gripper jaw at 6 bar, opening
17.5 N
Maximum torque on gripper jaw, Mx static
0.5 Nm
Pneumatic connection
M3
Housing material
Wrought aluminum alloy Anodized
