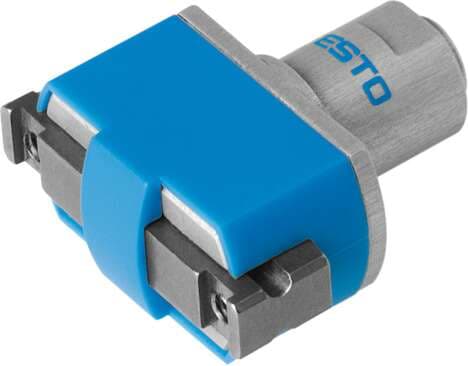

197566 Festo Grippers

Product Details

• Size
  12
• Type code
  HGPM
• Position sensing
  None
• Max. operating frequency of pneumatic gripper
  4 Hz
• Ambient temperature
  5 °C ... 60 °C
• Maximum torque on gripper jaw, Mz static
  0.5 Nm
• Type of mounting
  Clamped
• Housing material
  Wrought aluminum alloy Anodized
• Rotational symmetry
  0.15 mm
• Gripper function
  Parallel
• Symbol
  00991897
• Information on operating and pilot media
  Operation with oil lubrication possible (required for further use)
• Corrosion resistance class (CRC)
  1 - Low corrosion stress
• Maximum torque on gripper jaw, Mx static
  0.5 Nm
• Gripper jaw material
  High-alloy steel
• Max. interchangeability
  0.2 mm
• Mode of operation
  Single-acting Open
• Design
  Inclined plane
• Min. closing time at 6 bar
  3.7 ms
• Gripping force per gripper jaw at 6 bar, closing
  13.5 N
Product weight
41 g
Cover cap material
POM
Number of gripper jaws
2
Min. opening time at 6 bar
11 ms
Maximum force on gripper jaw Fz, static
30 N
Pneumatic connection
M3
Stroke per gripper jaw
3 mm
Pneumatic gripper repetition accuracy
≤ 0.05 mm
Total gripping force at 6 bar, opening
27 N
Operating pressure
4 bar ... 8 bar
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Maximum torque on gripper jaw, My static
0.5 Nm
Note on materials
Free of copper and PTFE
