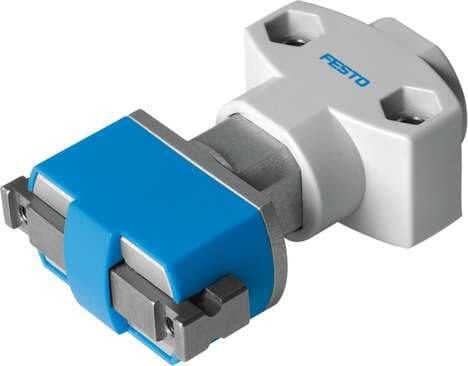

197565 Festo Grippers

Product Details

• Type code
  HGPM
• Design
  Inclined plane
• Maximum force on gripper jaw Fz, static
  30 N
• Product weight
  62 g
• Note on materials
  Free of copper and PTFE
• Information on operating and pilot media
  Operation with oil lubrication possible (required for further use)
• Stroke compensation spring force
  10 N ... 23 N
• Type of mounting
  With through-hole
• Stroke per gripper jaw
  3 mm
• Mode of operation
  Single-acting Open
• Position sensing
  None
• Max. operating frequency of pneumatic gripper
  4 Hz
• Min. closing time at 6 bar
  3.7 ms
• Gripping force per gripper jaw at 6 bar, closing
  13.5 N
• Maximum torque on gripper jaw, Mz static
  0.5 Nm
• Gripper jaw material
  High-alloy steel
• Size
  12
• Pneumatic gripper repetition accuracy
  ≤ 0.05 mm
• Gripper function
  Parallel
• Operating pressure
  4 bar ... 8 bar
Total gripping force at 6 bar, opening
27 N
Corrosion resistance class (CRC)
1 - Low corrosion stress
Maximum torque on gripper jaw, My static
0.5 Nm
Cover cap material
POM
Housing material
Wrought aluminum alloy Anodized
Max. interchangeability
0.2 mm
Number of gripper jaws
2
Symbol
00991897
Min. opening time at 6 bar
11 ms
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Ambient temperature
5 °C ... 60 °C
Maximum torque on gripper jaw, Mx static
0.5 Nm
Pneumatic connection
M3
