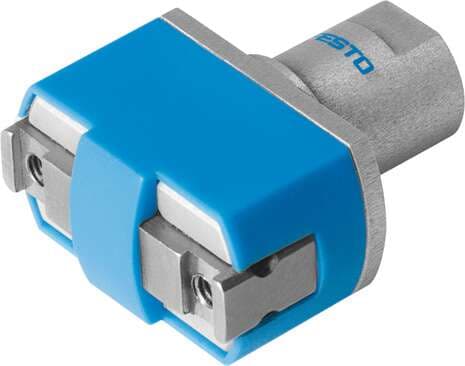

197563 Festo Grippers

Product Details

• Max. interchangeability
  0.2 mm
• Type code
  HGPM
• Design
  Inclined plane
• Operating pressure
  4 bar ... 8 bar
• Size
  8
• Rotational symmetry
  0.15 mm
• Number of gripper jaws
  2
• Position sensing
  None
• Max. operating frequency of pneumatic gripper
  4 Hz
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• Corrosion resistance class (CRC)
  1 - Low corrosion stress
• Maximum force on gripper jaw Fz, static
  10 N
• Type of mounting
  Clamped
• Housing material
  Wrought aluminum alloy Anodized
• Gripper function
  Parallel
• Total gripping force at 6 bar, closing
  16 N
• Min. closing time at 6 bar
  4.1 ms
• Ambient temperature
  5 °C ... 60 °C
• Maximum torque on gripper jaw, Mx static
  0.1 Nm
• Pneumatic connection
  M3
Stroke per gripper jaw
2 mm
Pneumatic gripper repetition accuracy
≤ 0.05 mm
Mode of operation
Single-acting Closed
Symbol
00991898
Min. opening time at 6 bar
1.9 ms
Gripping force per gripper jaw at 6 bar, opening
8 N
Maximum torque on gripper jaw, Mz static
0.1 Nm
Note on materials
Free of copper and PTFE
Cover cap material
POM
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Maximum torque on gripper jaw, My static
0.1 Nm
Product weight
11 g
Gripper jaw material
High-alloy steel
