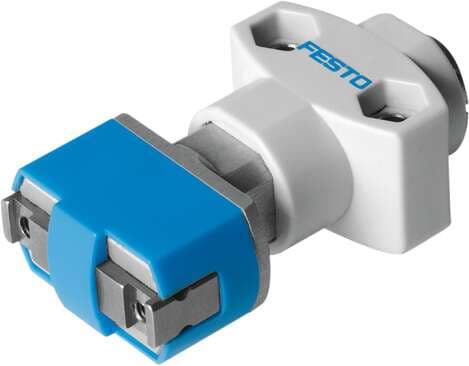

197562 Festo Grippers

Product Details

• Design
  Inclined plane
• Type code
  HGPM
• Gripper function
  Parallel
• Size
  8
• Mode of operation
  Single-acting Closed
• Symbol
  00991898
• Operating pressure
  4 bar ... 8 bar
• Corrosion resistance class (CRC)
  1 - Low corrosion stress
• Stroke compensation spring force
  4 N ... 6 N
• Housing material
  Wrought aluminum alloy Anodized
• Stroke per gripper jaw
  2 mm
• Number of gripper jaws
  2
• Total gripping force at 6 bar, closing
  16 N
• Max. operating frequency of pneumatic gripper
  4 Hz
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• Product weight
  19 g
• Note on materials
  Free of copper and PTFE
• Max. interchangeability
  0.2 mm
• Position sensing
  None
• Min. opening time at 6 bar
  1.9 ms
Ambient temperature
5 °C ... 60 °C
Maximum torque on gripper jaw, Mz static
0.1 Nm
Pneumatic connection
M3
Pneumatic gripper repetition accuracy
≤ 0.05 mm
Min. closing time at 6 bar
4.1 ms
Gripping force per gripper jaw at 6 bar, opening
8 N
Maximum torque on gripper jaw, Mx static
0.1 Nm
Cover cap material
POM
Gripper jaw material
High-alloy steel
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Maximum force on gripper jaw Fz, static
10 N
Maximum torque on gripper jaw, My static
0.1 Nm
Type of mounting
With through-hole
