195203 Festo Compressed Air Preparation Units

195203 on Powermatic Associates
Festo

Part#:195203

Alt. Part#:LFRS-3/4-D-DI-MAXI-KG-A

Manufacturer:Festo

Category:Compressed Air Preparation Units

Product Lifecycle:Active

Product description

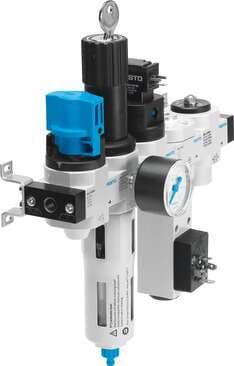

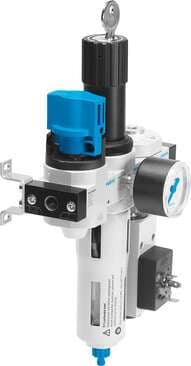

service unit LFRS-3/4-D-DI-MAXI-KG-A With lockable regulator head and pressure gauge, for nominal pressure 12 bar, for unlubricated compressed air. Size: Maxi, Series: D, Actuator lock: Rotary knob with integrated lock, Assembly position: Vertical +/- 5°,

Product Details

  • Type code
    LFRS
  • Grade of filtration
    40 µm
  • Bowl guard
    Metal bowl guard
  • Pressure gauge
    with pressure gauge
  • Air quality class at the output
    Compressed air as per ISO 8573-1:2010 [6:8:4] Inert gas
  • Ambient temperature
    -10 °C ... 60 °C
  • Material of bowl
    PC
  • Symbol
    00991760
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [-:-:-] Inert gas
  • Pneumatic connection 2
    G3/4
  • Size
    Maxi
  • Actuator lock
    Rotary knob with integrated lock
  • Max. condensate volume
    43 ml
  • Pressure regulation range
    2.5 bar ... 12 bar
  • Product weight
    5640 g
  • Housing material
    Die-cast zinc
  • Mounting position
    Vertical +/- 5°
  • Design
    Branching module Safety start-up valve
  • Standard nominal flow rate
    3000 l/min
  • Temperature of medium
    -10 °C ... 60 °C
  • Type of mounting
    Optionally: With accessories
  • Series
    D
  • Condensate drain
    Fully automatic
  • Operating pressure
    3 bar ... 12 bar
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Pneumatic connection 1
    G3/4

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
