194912 Festo Compressed Air Preparation Units
Part#:194912
Alt. Part#:FRCS-1/2-D-MIDI
Manufacturer:Festo
Category:Compressed Air Preparation Units
Product Lifecycle:Active
Product description

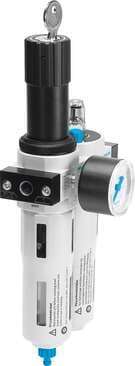

service unit FRCS-1/2-D-MIDI Filter/pressure regulator/lubricator combination, D series, with lockable regulator head. Size: Midi, Series: D, Actuator lock: Rotary knob with integrated lock, Assembly position: Vertical +/- 5°, Condensate drain: manual rot
Product Details
- Size Midi
- Mounting position Vertical +/- 5°
- Bowl guard Metal bowl guard
- Max. pressure hysteresis 0.2 bar
- Ambient temperature -10 °C ... 60 °C
- Housing material Die-cast zinc
- Actuator lock Rotary knob with integrated lock
- Max. condensate volume 43 ml
- Operating pressure 1 bar ... 16 bar
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Air quality class at the output Compressed air as per ISO 8573-1:2010 [7:8:-] Inert gas
- Pneumatic connection 1 G1/2
- Grade of filtration 40 µm
- Pressure regulation range 0.5 bar ... 12 bar
- Product weight 1680 g
- Note on materials RoHS-compliant
- Type code FRCS
- Condensate drain Manually rotating
- Symbol 00991549
- Operating medium Compressed air as per ISO 8573-1:2010 [-:9:-] Inert gas
- Temperature of medium -10 °C ... 60 °C
- Pneumatic connection 2 G1/2
- Series D
- Design Filter regulator with pressure gauge Proportional standard oil mist lubricator
- Pressure gauge with pressure gauge
- Standard nominal flow rate 2600 l/min
- Type of mounting Line installation With accessories
- Material of bowl PC
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
194912 Related Documents
Similar products from: Festo Compressed Air Preparation Units
Manufacturer warranty
194912 Festo
Get a quick Quote!
Request a quote, and we will send you price and availability within minutes.
Select Qty:
Average response time: 11 minutes
Worldwide Shipping and Delivery
Secure Payment Processing
Warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
Compare 194912 with other Compressed Air Preparation Units products
Size
Mounting position
Bowl guard
Max. pressure hysteresis
Ambient temperature
Housing material
Actuator lock
Max. condensate volume
Operating pressure
Information on operating ...
Selected product
194912
Festo
service unit FRCS-1/2-D-MIDI Filter/pressure regulator/lubricator combination, D series, with lockab...
SizeMidi
Mounting positionVertical +/- 5°
Bowl guardMetal bowl guard
Max. pressure hysteresis0.2 bar
Ambient temperature-10 °C ... 60 °C
Housing materialDie-cast zinc
Actuator lockRotary knob with integrated ...
Max. condensate volume43 ml
Operating pressure1 bar ... 16 bar
Information on operating and pilot mediaOperation with oil lubricati...
162684
Festo
filter regulator LFR-3/8-D-MINI-A With metal bowl guard and pressure gauge. With automatic condensat...
SizeMini
Mounting positionVertical +/- 5°
Bowl guardMetal bowl guard
Max. pressure hysteresis-
Ambient temperature-
Housing material-
Actuator lockRotary knob with detent
Max. condensate volume22 ml
Operating pressure-
Information on operating and pilot media-
159637
Festo
filter regulator LFR-1-D-MAXI-A With metal bowl guard and pressure gauge. With automatic condensate ...
SizeMaxi
Mounting positionVertical +/- 5°
Bowl guardMetal bowl guard
Max. pressure hysteresis-
Ambient temperature-
Housing material-
Actuator lockRotary knob with detent
Max. condensate volume80 ml
Operating pressure-
Information on operating and pilot media-
About the manufacturer
Powermatic Associates is an authorized Festo distributor, proudly offering a wide array of Festo's innovative industrial automation products and solutions. Festo is a globally recognized leader in automation technology and pneumatic solutions, renowned for their commitment to quality, efficiency, and sustainability. With a vast portfolio ranging from actuators, valves, sensors, and connectors to e...
About the Product Category
Also referred to as an FRL unit (Filter, Regulator, Lubricator), an air preparation unit is utilized to treat compressed air. It accomplishes this by eliminating impurities, managing pressure, and adding specific quantities of oil for lubrication.
