1915546 Festo Ball Valves
Part#:1915546
Alt. Part#:VZBA-3/4"-GGG-63-32L-F0405-V4V4T-PS30-R-
Manufacturer:Festo
Category:Ball Valves
Product Lifecycle:Active
Product description

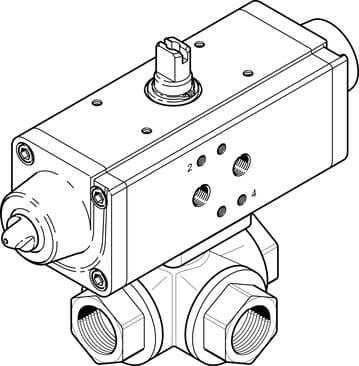

ball valve actuator unit VZBA-3/4"-GGG-63-32L-F0405-V4V4T-PS30-R- 3/2-way, flange hole pattern F0405, thread EN 10226-1. Design structure: (* 3-way ball valve, * L hole), Type of actuation: pneumatic, Assembly position: Any, Mounting type: Line installati
Product Details
- Type code VZBA
- Operating pressure 6 bar ... 8.4 bar
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Material number of housing 1.4408
- Shaft material High-alloy stainless steel
- Explosion prevention and protection Zone 1 (ATEX) Zone 22 (ATEX)
- Fitting connection Rp3/4
- Nominal pressure of fitting PN 63
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Housing material High-alloy stainless steel
- Ball material High-alloy stainless steel
- Corrosion resistance class (CRC) 3 - High corrosion stress
- Actuation type Pneumatic
- Mounting position Any
- Nominal width DN 20
- Temperature of medium -10 °C ... 200 °C
- Explosion group of assembly IIC, IIIC
- Seals material PTFE PTFE-reinforced
- Product weight 3250 g
- Switching position indication Slot direction = flow direction
- Medium Compressed air as per ISO 8573-1:2010 [-:-:-] Neutral liquids
- Max. surface temperature of assembly TX
- Flow rate Kv type L 5.1 m³/h
- Material number for ball 1.4408
- Explosive ambient temperature -10°C <= Ta <= +60°C
- Design 3-way ball valve Drilled L hole
- Type of mounting Line installation
- Symbol 00995330
- Ambient temperature -10 °C ... 80 °C
- Note on materials Contains paint-wetting impairment substances RoHS-compliant
- Material number for shaft 1.4401
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
