1774107 Festo Ball Valves

1774107 on Powermatic Associates
Festo

Part#:1774107

Alt. Part#:VZBA-1"-WW-63-T-22-F0405-V4V4T-PS30-R-90

Manufacturer:Festo

Category:Ball Valves

Product Lifecycle:Active

Product description

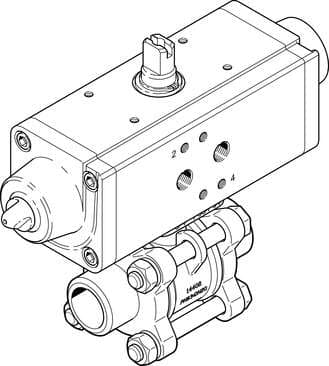

ball valve actuator unit VZBA-1"-WW-63-T-22-F0405-V4V4T-PS30-R-90 2/2-way, flange hole pattern F0405, welded end. Design structure: (* 2-way ball valve, * Swivel drive), Type of actuation: pneumatic, Assembly position: Any, Mounting type: Line installatio

Product Details

  • Actuation type
    Pneumatic
  • Nominal width DN
    25
  • Temperature of medium
    -10 °C ... 200 °C
  • Max. surface temperature of assembly
    TX
  • Note on materials
    Contains paint-wetting impairment substances RoHS-compliant
  • Product weight
    3500 g
  • Type code
    VZBA
  • Switching position indication
    Slot direction = flow direction
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Explosion group of assembly
    IIC, IIIC
  • Material number for ball
    1.4408
  • Ball material
    High-alloy stainless steel
  • Corrosion resistance class (CRC)
    3 - High corrosion stress
  • Mounting position
    Any
  • Operating pressure
    6 bar ... 8.4 bar
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Housing material
    High-alloy stainless steel
  • Shaft material
    High-alloy stainless steel
  • Explosion prevention and protection
    Zone 1 (ATEX) Zone 22 (ATEX)
  • Fitting connection
    Weld-on ends/weld-on ends
  • Symbol
    00992011
  • Flow rate Kv
    71.5 m³/h
  • Material number of housing
    1.4408
  • Explosive ambient temperature
    -10°C <= Ta <= +60°C
  • Design
    2-way ball valve Quarter turn actuator
  • Type of mounting
    Line installation
  • Nominal pressure of fitting PN
    63
  • Medium
    Compressed air as per ISO 8573-1:2010 [-:-:-] Neutral liquids
  • Ambient temperature
    -10 °C ... 80 °C
  • Seals material
    PTFE PTFE-reinforced
  • Material number for shaft
    1.4401

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
