176037 Festo Couplings

176037 on Powermatic Associates
Festo

Part#:176037

Alt. Part#:EAMC-40-66-XX-20

Manufacturer:Festo

Category:Couplings

Product Lifecycle:Active

Product description

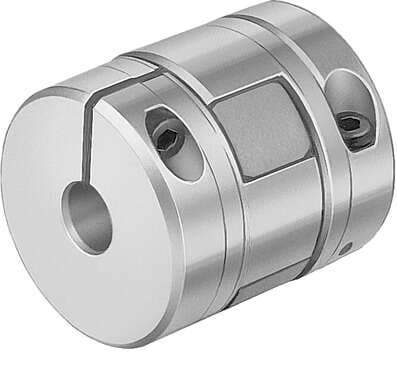

coupling EAMC-40-66-XX-20 For DGE. Holder diameter 2: 20 mm, Size: 40, Nominal length: 66 mm, Assembly position: Any, Max. speed: 6500 1/min

Product Details

  • Ambient temperature
    -25 °C ... 60 °C
  • Nominal length
    66 mm
  • Mounting position
    Any
  • Relative air humidity
    0 - 95 %
  • Note on materials
    RoHS-compliant
  • Size
    40
  • Type code
    EAMC
  • Storage temperature
    -25 °C ... 60 °C
  • Product weight
    139 g
  • Mass moment of inertia
    42.3 kgmm²
  • Diameter of holder 2
    20 mm
  • Max. rotational speed
    6500 1/min

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

176037 Related Documents

176037 DataSheet.pdf
