1651542 Festo Compressed Air Preparation Accessories
Part#:1651542
Alt. Part#:PAML-CP-90-HP3-G34
Manufacturer:Festo
Category:Compressed Air Preparation Accessories
Product Lifecycle:Active
Product description

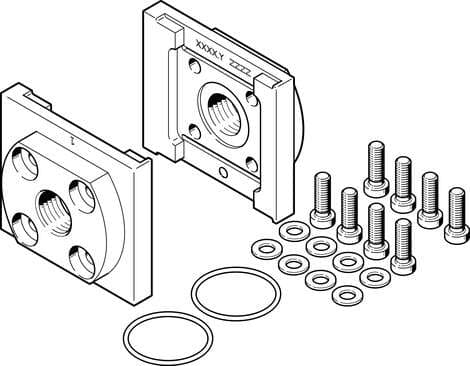

sub-base PAML-CP-90-HP3-G34 Size: 90, Nominal diameter DN: 36, Series: L, Operating pressure: 0 - 50 bar, CE mark (see declaration of conformity): to EU directive pressure devices
Product Details
- Corrosion resistance class (CRC) 2 - Moderate corrosion stress
- Product weight 750 g
- Seals material NBR
- Type code PAML
- Size 90
- Series L
- Operating pressure 0 MPa ... 5 MPa
- Operating medium Compressed air as per ISO 8573-1:2010 [-:-:-]
- Ambient temperature 5 °C ... 60 °C
- Nominal width DN 36
- Temperature of medium 5 °C ... 60 °C
- Material of screws Stainless steel
- CE marking (see declaration of conformity) as per EU pressure equipment directive
- Pneumatic connection 1 G3/4
- Storage temperature -10 °C ... 60 °C
- For use in the food industry See supplementary material information
- Note on materials RoHS-compliant
- Material of sub-base Wrought aluminum alloy
- Pneumatic connection 2 G3/4
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
