158962 Festo Cable Assemblies

Name: 158962
Brand: Festo

Part#:158962

Alt. Part#:SIM-M8-4WD-2,5-PU

Manufacturer:Festo

Category:Cable Assemblies

Product Lifecycle:Active

Product description

connecting cable SIM-M8-4WD-2,5-PU For sensors and proximity switches. Conforms to standard: (* EN 61076-2-104, * EN 61984), Electrical connection: (* 4-pole / 4-wire, * Angled socket/open end, * M8x1 / -), Operating voltage range DC: 0 - 30 V, Operating

Product Details

Type code
SIM
Surge resistance
0.8 kV
Cable length
2.5 m
Note on materials
RoHS-compliant Free of phosphoric acid ester
Material of union nut
Brass Nickel-plated
DC operating voltage range
0 V ... 30 V
Connector cable test conditions
Flexural strength: as per Festo standard Cable chain: 5 million cycles, bending radius 75 mm
Wire insulation color code
Blue White
Degree of protection
IP65 IP68
Color cable sheath
Gray
Material of cable sheath
TPE-U(PU)
Symbol
00991872
Conforms to standard
EN 61076-2-104 EN 61984
Current rating at 40°C
4 A
Cable design
4 x 0.25 mm²
Ambient temperature with flexible cable installation
-5 °C ... 80 °C
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Material of pin contacts
Brass, gold-plated
Electrical connection
4-pin/4-wire M8x1 / -
Cable characteristic
Standard

Nominal conductor cross section

0.25 mm²

CE marking (see declaration of conformity)

As per EU RoHS directive

Housing material

TPE-U(PU)

Seals material

NBR

Operating voltage range AC

0 V ... 30 V

Cable diameter

4.5 mm

Ambient temperature

-25 °C ... 80 °C

Contamination level

Housing colour

Black

Insulating sheath material

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

158962 Related Documents

158962 DataSheet.pdf

Similar products from: Festo Cable Assemblies

575419

Festo

connecting cable NEBV-S1G25-K-10-N-LE25-S6 Based on the standard: DIN 47100, Cable identification: Without inscription label holder, Connection frequency: 50, Product weight: 1820 g, Electrical connection 1, function: Field device side

3 in stock

550748

Festo

encoder cable NEBM-M12G8-E-5-S1G9 Suitable for servo motor EMMS-ST-... Cable identification: Without inscription label holder, Electrical connection 1, function: Field device side, Electrical connection 1, design: Round, Electrical connection 1, connectio

3 in stock

1450945

Festo

motor cable NEBM-S1W15-E-5-Q7-LE6 Suitable for servo motor EMMS-ST-... Cable identification: Without inscription label holder, Electrical connection 1, function: Field device side, Electrical connection 1, design: Angular, Electrical connection 1, connect

3 in stock

541344

Festo

connecting cable NEBU-M8W4-K-2.5-LE4 for proximity sensors, position transmitter, pressure switch, flow sensors, visual and inductive sensors. Conforms to standard: (* Core colours and connection numbers to EN 60947-5-2, * EN 61076-2-104), Cable identific

9 in stock

550326

Festo

connecting cable NEBU-M12G5-K-2.5-LE4 For SOPA air gap sensor. Conforms to standard: (* Core colours and connection numbers to EN 60947-5-2, * EN 61076-2-101), Cable identification: with 2x label holders, Product weight: 77 g, Electrical connection 1, fun

1 in stock

1450739

Festo

motor cable NEBM-S1W9-E-7-Q5-LE6 Suitable for servo motor EMMS-ST-... Cable identification: Without inscription label holder, Electrical connection 1, function: Field device side, Electrical connection 1, design: Angular, Electrical connection 1, connecti

3 in stock

Manufacturer warranty

158962 Festo

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare 158962 with other Cable Assemblies products

Type code

Surge resistance

Cable length

Note on materials

Material of union nut

DC operating voltage rang...

Connector cable test cond...

Wire insulation color cod...

Degree of protection

Color cable sheath

Selected product

Backordered

158962

Festo

connecting cable SIM-M8-4WD-2,5-PU For sensors and proximity switches. Conforms to standard: (* EN 6...

Type codeSIM

Surge resistance0.8 kV

Cable length2.5 m

Note on materialsRoHS-compliant Free of phosp...

Material of union nutBrass Nickel-plated

DC operating voltage range0 V ... 30 V

Connector cable test conditionsFlexural strength: as per Fe...

Wire insulation color codeBlue White

Degree of protectionIP65 IP68

Color cable sheathGray

9 in stock

541344

Festo

connecting cable NEBU-M8W4-K-2.5-LE4 for proximity sensors, position transmitter, pressure switch, f...

Type codeNEBU

Surge resistance0.8 kV

Cable length2.5 m

Note on materials-

Material of union nut-

DC operating voltage range0 V ... 30 V

Connector cable test conditionsFlexural strength: as per Fe...

Wire insulation color code-

Degree of protection-

Color cable sheath-

1 in stock

550326

Festo

connecting cable NEBU-M12G5-K-2.5-LE4 For SOPA air gap sensor. Conforms to standard: (* Core colours...

Type codeNEBU

Surge resistance2.5 kV

Cable length2.5 m

Note on materials-

Material of union nut-

DC operating voltage range0 V ... 250 V

Connector cable test conditionsFlexural strength: as per Fe...

Wire insulation color code-

Degree of protection-

Color cable sheath-

About the manufacturer

Powermatic Associates is an authorized Festo distributor, proudly offering a wide array of Festo's innovative industrial automation products and solutions. Festo is a globally recognized leader in automation technology and pneumatic solutions, renowned for their commitment to quality, efficiency, and sustainability. With a vast portfolio ranging from actuators, valves, sensors, and connectors to e...

Recently viewed products

CRDSNU-20-72-P-A-CS

Festo

Festo CRDSNU-20-72-P-A-CS is a pneumatic cylinder designed for mounting via accessories, featuring a high-alloy stainless steel cylinder barrel, cover, and piston rod. It operates within an ambient air temperature range of 0°C to +80°C and has a round cylindrical shape. This stainless steel double-acting single-ended round ISO pneumatic air cylinder falls under the CRDSNU series, with a design based on ISO6432. It includes built-in magnet elastic cushioning at both ends for unlubricated operation and allows for position sensing via a proximity sensor. The cylinder is double-acting, utilizing compressed air as per ISO8573-1;2010 [7;4;4] standards. It features an M8 male threaded rod and a 1/8" BSPP / G1/8" threaded pneumatic port for connections. The operating pressure range is +1 to +10bar, with a bore size of 20mm and a stroke length of 72mm.

0 in stock

MDI3CRL17C4-EQ-N

Novanta IMS

Novanta IMS MDI3CRL17C4-EQ-N is a stepper motor that features an integrated driver and operates as a 2-phase DC stepper motor. It is designed with an external single-end 512-line optical encoder, a rear control knob, and a triple (3) motor stack, enhanced by the Plus 2 version for expanded features. This motor utilizes a 16-pin locking wire crimp connector and a 10-pin friction-lock wire crimp connector for its connections. It supports RS-422 and RS-485 communication protocols. The supply voltage required for operation ranges from 12Vdc to 48Vdc, with an optimal performance at 24Vdc. It is mounted using a 42x42mm flange. The ambient air temperature suitable for its operation is between 0 and +85°C. This stepper motor is rated with a degree of protection of IP20, has a moment of inertia of 0.082kg.cm^2, a stall torque of 53N.cm, and offers a resolution characterized by a 1.8° step angle.

0 in stock

MDI4MRQ34B2-EQ

Novanta IMS

Novanta IMS MDI4MRQ34B2-EQ is a stepper motor within the Stepper motors sub-range, featuring an integrated driver and a 2-phase AC stepper motor design. It is equipped with an external single-end 512-line optical encoder and a double (2) motor stack, Plus 2 version for expanded features. The connection is facilitated through a 19-pin M23 male connector and a 5-pin M12 female connector, supporting RS-422 and RS-485 communication protocols. This stepper motor operates on a 240Vac supply voltage and is designed for mounting with an 85x85mm flange. It can operate in ambient air temperatures ranging from 0 to +85°C and has a degree of protection rated at IP65. The moment of inertia is specified at 1.6kg.cm2, with a stall torque of 353N.cm, and a resolution characterized by a 1.8° step angle.

0 in stock

LMHCE572C

Novanta IMS

Novanta IMS LMHCE572C is a stepper motor within the high-torque stepper motors sub-range, featuring an integrated driver and a high-torque DC stepper motor. It is designed with an incremental magnetic encoder, double (2) motor stack, and operates on closed-loop hMTechnology. The connection types include a 4-pin M12 male connector, a 12-pin M12 male connector, and a 5-pin M12 male connector, supporting Ethernet/IP and Modbus TCP communication protocols. The supply voltage ranges from 12Vdc to 60Vdc, with optimal performance at 24Vdc and 48Vdc. It is mounted via a 57x57mm flange and offers a degree of protection rated at IP65. The moment of inertia is 0.22kg.cm^2, with a stall torque of 186N.cm and a resolution of a 1.8° step angle.

0 in stock

61570882

SAB

SABIX A 157 FRNC - 16 AWG/1c, flame retardant halogen-free 1000V white hook-up wire, UL, CE, RoHS

0 in stock

ZB4BD3

Schneider Electric

Schneider Electric ZB4BD3 is a selector switch belonging to the XB4 sub-range, featuring a head with a standard handle. The bezel of this switch is chromium-plated and made of metal, presenting a round shape. It offers a high degree of protection with ratings of IP69K, NEMA 4X, and NEMA 13, ensuring its suitability for various industrial environments. The mechanical durability of this switch is rated at 1,000,000 operations at no load. It has a diameter of 22 mm and operates in a 3-position stay-put mode, with angular positions set at -45°, 0, and +45°.

0 in stock

CRDSNU-20-72-P-A-CS

Festo

0 in stock

MDI3CRL17C4-EQ-N

Novanta IMS

0 in stock

MDI4MRQ34B2-EQ

Novanta IMS

0 in stock

LMHCE572C

Novanta IMS

0 in stock

ZB4BD3

Schneider Electric

0 in stock

CRDSNU-20-72-P-A-CS

Festo

0 in stock

MDI3CRL17C4-EQ-N

Novanta IMS

0 in stock

Relevant products

1589339

Verified stock: 3

plug socket NEFF-S1G44LB Protection class: IP40, Ambient temperature: -5 - 50 °C, Materials note: Conforms to RoHS, Corrosion resistance classification CRC: 2 - Moderate corrosion stress

Festo

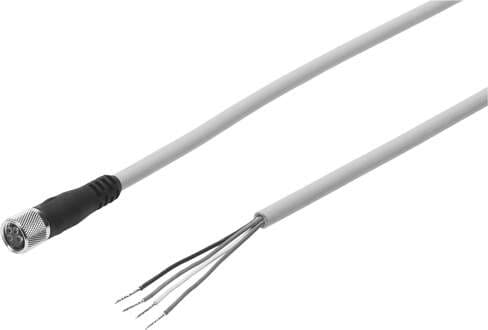

158961

Verified stock: 0

connecting cable SIM-M8-4GD-5-PU For sensors and proximity switches. Conforms to standard: (* EN 61076-2-104, * EN 61984), Electrical connection: (* 4-pole / 4-wire, * Straight socket/open end, * M8x1 / -), Operating voltage range DC: 0 - 30 V, Operating

Festo

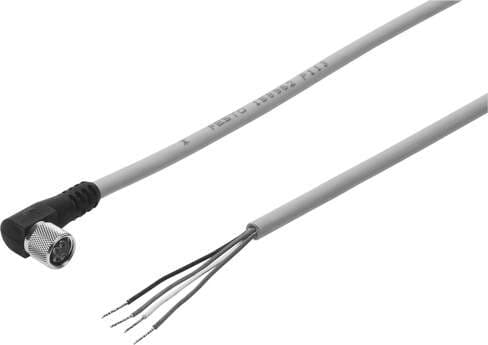

158963

Verified stock: 0

connecting cable SIM-M8-4WD-5-PU For sensors and proximity switches. Conforms to standard: (* EN 61076-2-104, * EN 61984), Electrical connection: (* 4-pole / 4-wire, * Angled socket/open end, * M8x1 / -), Operating voltage range DC: 0 - 30 V, Operating vo

Festo

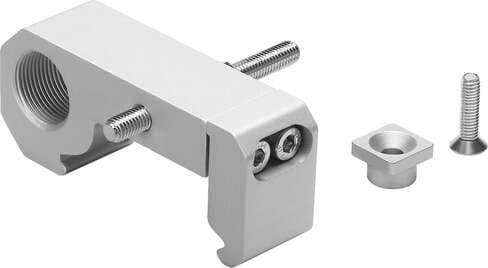

158910
