153510 Festo Pressure Control Valves

Name: 153510
Brand: Festo

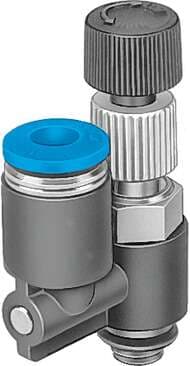

Festo 153510 differential pressure regulator LRL-M5-QS-4 Without manometer, with male thread and QS plug connector. Controller function: (* Differential pressure, constant, * with return flow), Pneumatic connection, port 1: M5, Pneumatic connection, port 2: QS-4, Mo

Part#:153510

Manufacturer:Festo

Alt. Part#:LRL-M5-QS-4

Product Lifecycle:Active

Get a quick Quote!

differential pressure regulator LRL-M5-QS-4 Without manometer, with male thread and QS plug connector. Controller function: (* Differential pressure, constant, * with return flow), Pneumatic connection, port 1: M5, Pneumatic connection, port 2: QS-4, Mo

About the manufacturer: Festo is one of the manufacturers that offers Pressure Control Valves that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.

Check out the 153510 Festo price in the box on the right side or send a quick quote.

Product Details

Pneumatic connection 2
QS-4
Inlet pressure 1
0 bar ... 9 bar
Mounting position
Any
Product weight
9.5 g
Material of screwed trunnion
Brass Nickel-plated
Controller function
Differential pressure constant With return flow function
Type of mounting
Screw-in
Operating medium
Compressed air as per ISO 8573-1:2010 [7:-:-]
Symbol
00991535
Note on materials
RoHS-compliant
Type code
LRL
Nominal flow rate, open
30 l/min
Ambient temperature
0 °C ... 60 °C
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Pneumatic connection 1
M5
Pressure regulation range
2 bar ... 6 bar
Actuator lock
Counter-locking
Nominal flow rate, closed
30 l/min
Housing material
PBT-reinforced
Design
Directly controlled piston regulator with continuous compressed air supply

Material of threaded seal

PTFE

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
